Remove and install bracket at AC housing - AR83.30-P-5200-01GO

  1. Unscrew nut (1).
  2. Unscrew bolts (2).
  3. Remove bracket (3).
  4. Install in the reverse order.

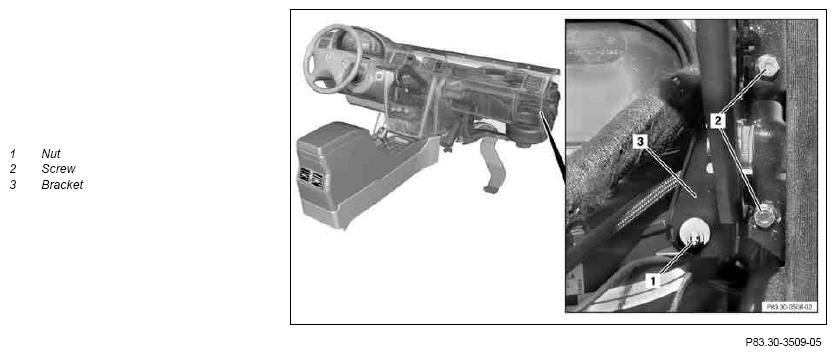

    Fig 1: Identifying AC Housing Bracket Components
    G07740679Courtesy of MERCEDES-BENZ USA
