Connect compression recorder - AR01.10-P-0010-01GS

Fig 1: Identifying Compression Tester (001 589 76 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Electrical Connection Kit (220 589 00 99 00)

Courtesy of MERCEDES-BENZ USA

1. Open cap (1) on jump-starting point (2) cover.
2. Clip connection terminal of compression recorder on terminal block terminal 30 (X4/30).

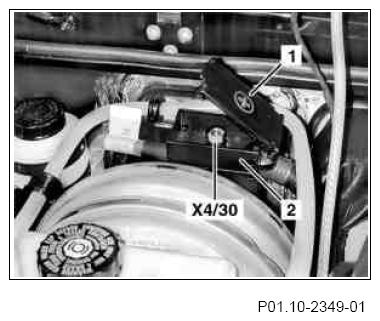

   Fig 3: Identifying Cap On Jump-Starting Point Cover And Terminal Block Terminal 30

   Courtesy of MERCEDES-BENZ USA
3. Remove cover (arrow) below right dashboard.

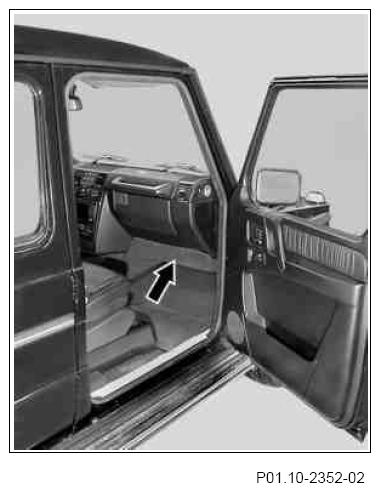

   Fig 4: Locating Cover Below Right Dashboard

   Courtesy of MERCEDES-BENZ USA
4. Remove starter relay (K6).

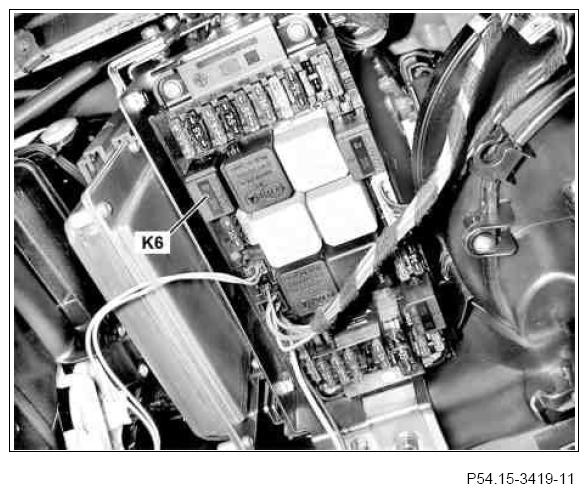

   Fig 5: Identifying Starter Relay

   Courtesy of MERCEDES-BENZ USA
5. Connect up adapter line from electrical connection kit to slot (4).
6. Connect adapter cable to the cable of the compression recorder .

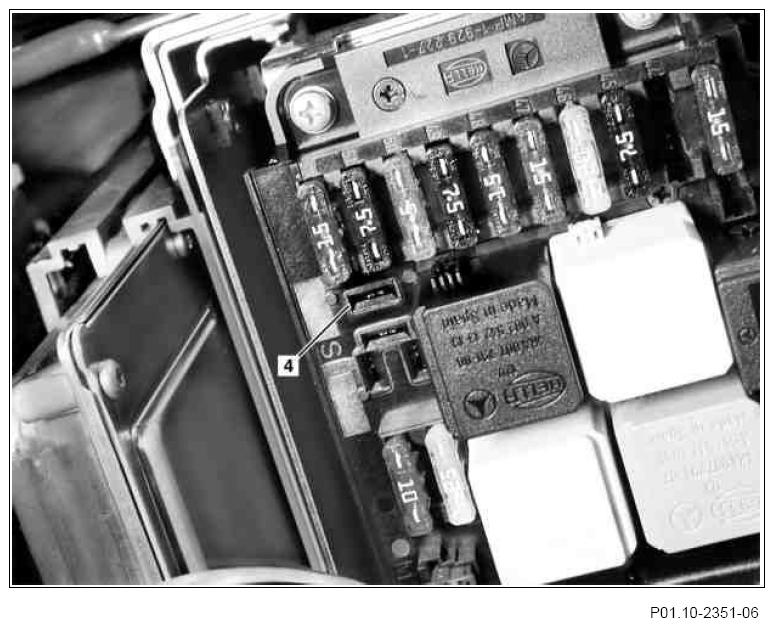

Fig 6: Identifying Slot For Adapter Line

Courtesy of MERCEDES-BENZ USA
