Arrangement and assignment of the wiring and plug connectors, engine compartment (right) - GF00.19-P-1000-02I
MODEL 463 with ENGINE 112.945
MODEL 463 with ENGINE 113.962

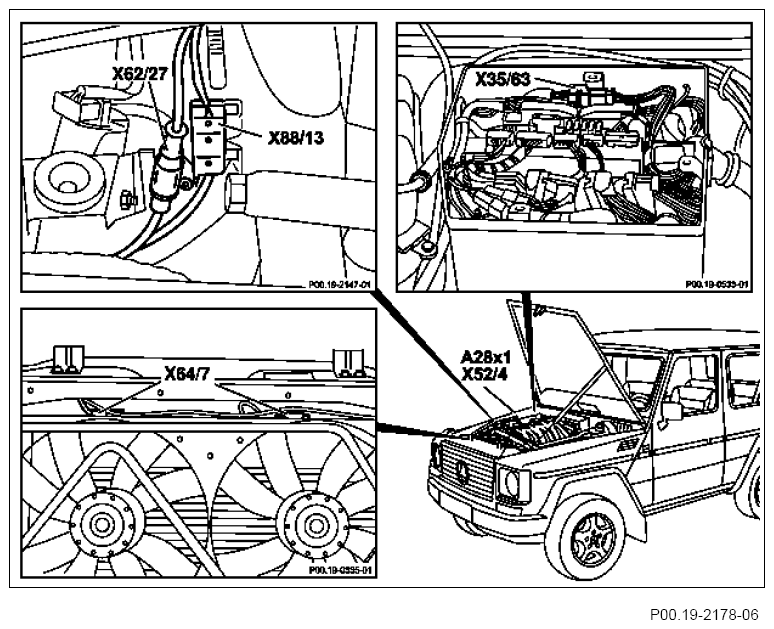

Fig 1: Arrangement And Assignment Of Wiring And Plug Connectors - Engine Compartment, Right (1 Of 2)

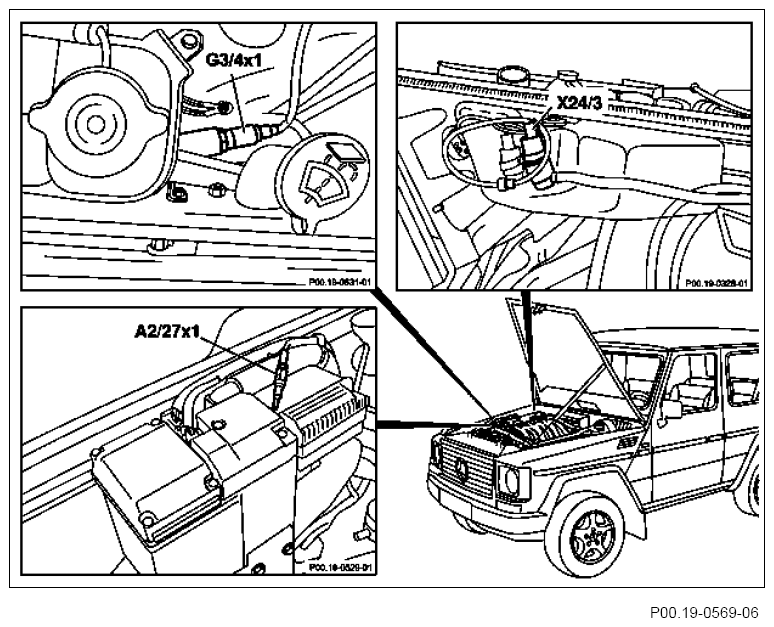

Fig 2: Arrangement And Assignment Of Wiring And Plug Connectors - Engine Compartment, Right (2 Of 2)
| Item | Designation | Cable colors | Cable colors | Notes | |
|---|---|---|---|---|---|
| A2/27x1 | STH (stationary heater) antenna connector | Optional STH | |||
| A28x1 | Radio and portable CTEL antenna connector | 1 | Valid for cabrio with portable CTEL and radio | ||
| 2 | Screening | ||||
| G3/4x1 | Right O2 sensor, upstream TWC, connector | rt/sw |
1 | ||
| br/sw |
2 | ||||
| sw |
3 | ||||
| ge |
4 | ||||
| X24/3 | HCS connector | 1 | |||
| 2 | |||||
| X35/63 | Control module box/engine separation point | sw/ge |
4 | ||
| bl |
5 | ||||
| li |
6 | ||||
| sw/gr/rt |
7 | Optional AC | |||
| rt/ws |
8 | ||||
| rt/ws |
9 | ||||
| rt/sw |
12 | ||||
| rt/gn |
13 | ||||
| X52/4 | Right side turn signal lamp connector | sw/gn |
Optional ATA | ||
| sw/gn |
|||||
| X62/27 | Right front ABS vehicle speed sensor connector | ||||
| X64/7 | Auxiliary fan connector, 2-pin | br |
1 | Optional AC | |
| br |
2 | ||||
| X88/13 | Right front brake wear indicator contact sensor connector | br |
1 | ||
| sw |
2 | ||||
