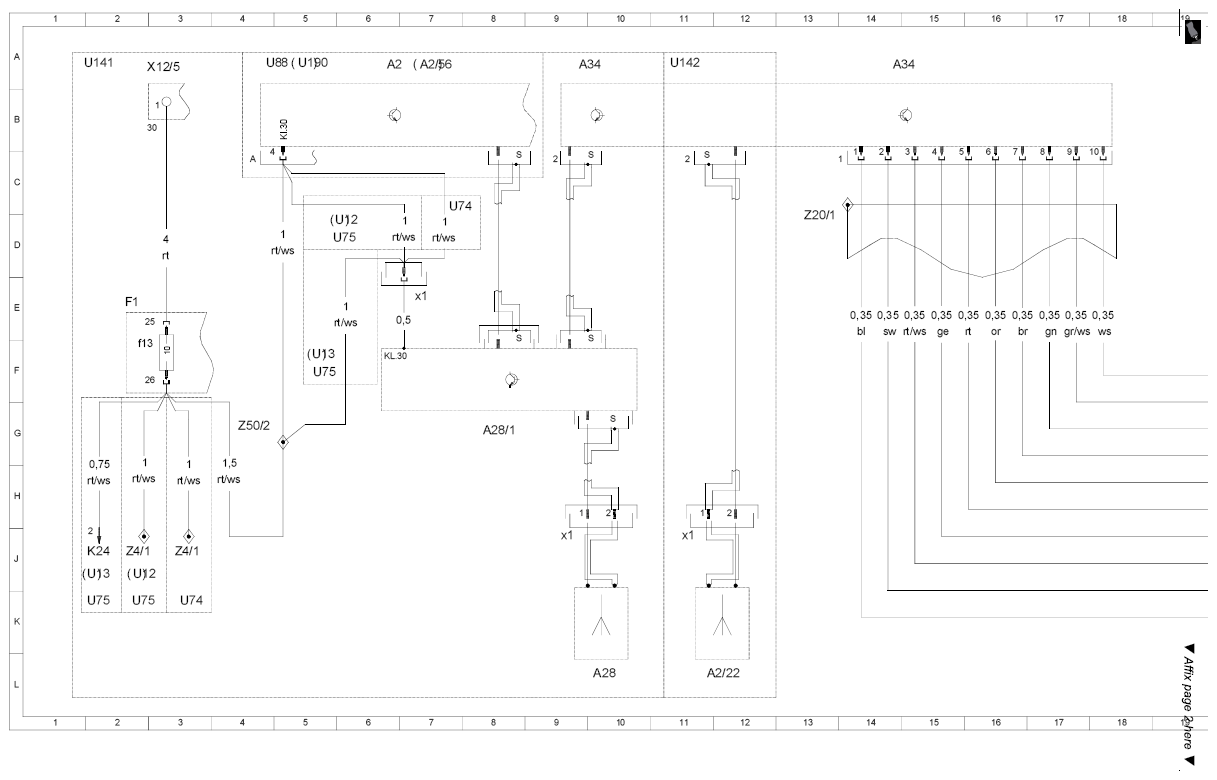

| A2 |
Radio |
6 A |
| A2/22 |
Telephone and fax antenna |
11 L |
| A2/22x1 |
Telephone and fax antenna connector |
11 J |
| A2/56 |
Radio and navigation unit |
7 A |
| A28 |
Radio and portable CTEL antenna |
10 L |
| A28/1 |
Radio and portable CTEL antenna splitter |
8 G |
| A28/1x1 |
Antenna splitter voltage supply connector |
7 E |
| A28x1 |
Radio and portable CTEL antenna connector |
9 J |
| A34 |
Telephone handset |
9 A |
| A34 |
Telephone handset |
14 A |

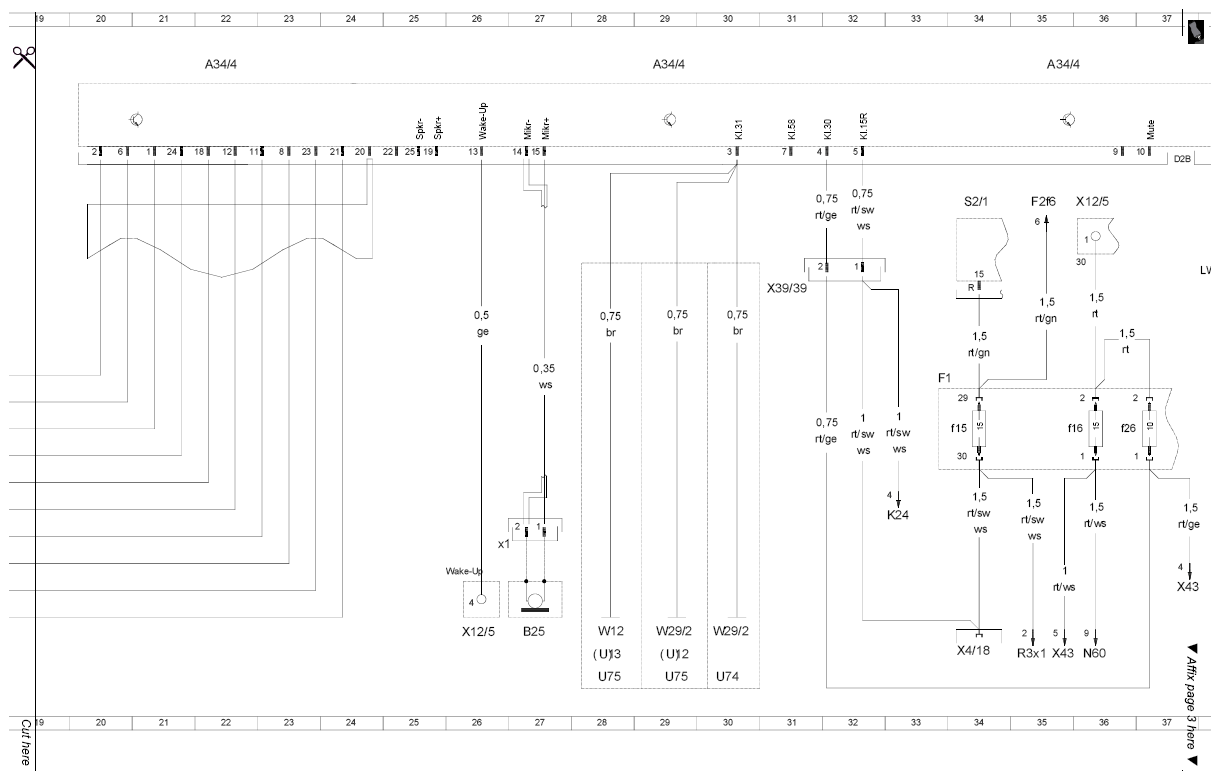

| A34/4 |
Telephone interface |
22 A |
| A34/4 |
Telephone interface |
29 A |
| A34/4 |
Telephone interface |
35 A |
| B25 |
Hands-free system microphone |
27 K |
| B25x1 |
Hands-free microphone connector |
26 J |
| F1 |
Fuse box |
2 E |
| F1 |
Fuse box |
33 F |
| F1f13 |
Fuse 13 |
2 F |
| F1f15 |
Fuse 15 |
34 G |
| F1f16 |
Fuse 16 |
35 G |
| F1f26 |
Fuse 26 |
36 G |
| F2f6 |
Fuse 6 |
35 C |
| K24 |
Comfort shift relay |
2 J |
| K24 |
Comfort shift relay |
33 H |
| N60 |
CL [ZV] control unit |
36 L |
| R3x1 |
Cigar lighter connector |
35 L |
| S2/1 |
Ignition/starter switch |
34 C |
| U12 |
Valid for left-hand drive vehicles |
2 J |
| U12 |
Valid for left-hand drive vehicles |
5 D |
| U12 |
Valid for left-hand drive vehicles |
29 L |
| U13 |
Valid for right-hand drive vehicles |
2 J |
| U13 |
Valid for right-hand drive vehicles |
5 F |
| U13 |
Valid for right-hand drive vehicles |
28 L |
| U141 |
Valid for convertibles with portable CTEL and radio |
1 A |
| U142 |
Not valid for convertible |
11 A |
| U190 |
Valid for APS |
5 A |
| U74 |
Valid for diesel engines |
3 K |
| U74 |
Valid for diesel engines |
7 D |
| U74 |
Valid for diesel engines |
30 L |
| U75 |
Valid for gasoline engines |
2 K |
| U75 |
Valid for gasoline engines |
2 K |
| U75 |
Valid for gasoline engines |
5 F |
| U75 |
Valid for gasoline engines |
5 D |
| U75 |
Valid for gasoline engines |
28 L |
| U75 |
Valid for gasoline engines |
29 L |
| U88 |
Valid for radio |
4 A |
| W12 |
Ground (center console) |
28 K |
| W29/2 |
Ground (right A-pillar) |
29 K |
| W29/2 |
Ground (right A-pillar) |
30 K |
| X12/5 |
Circuit 30, 15, 61 terminal block, wake-up |
2 A |
| X12/5 |
Circuit 30, 15, 61 terminal block, wake-up |
26 K |
| X12/5 |
Circuit 30, 15, 61 terminal block, wake-up |
36 C |
| X39/39 |
Handy connector |
31 E |
| X4/18 |
Circuit 15R terminal block (1-pin) |
34 L |

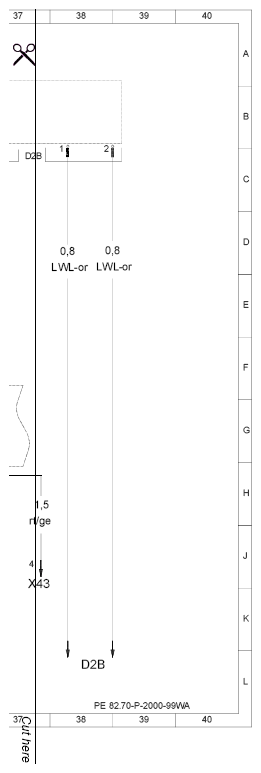

| X43 |
ATA [EDW]/central locking (CL [ZV]) connector |
35 L |
| X43 |
ATA [EDW]/central locking (CL [ZV]) connector |
37 K |
| Z20/1 |
Shielding placed inside insulating tubing |
13 D |
| Z4/1 |
Circuit 30 (fused) connector sleeve, convenience and rear dome lamp |
2 J |
| Z4/1 |
Circuit 30 (fused) connector sleeve, convenience and rear dome lamp |
3 J |
| Z50/2 |
Connector sleeve 2 |
4 G |
