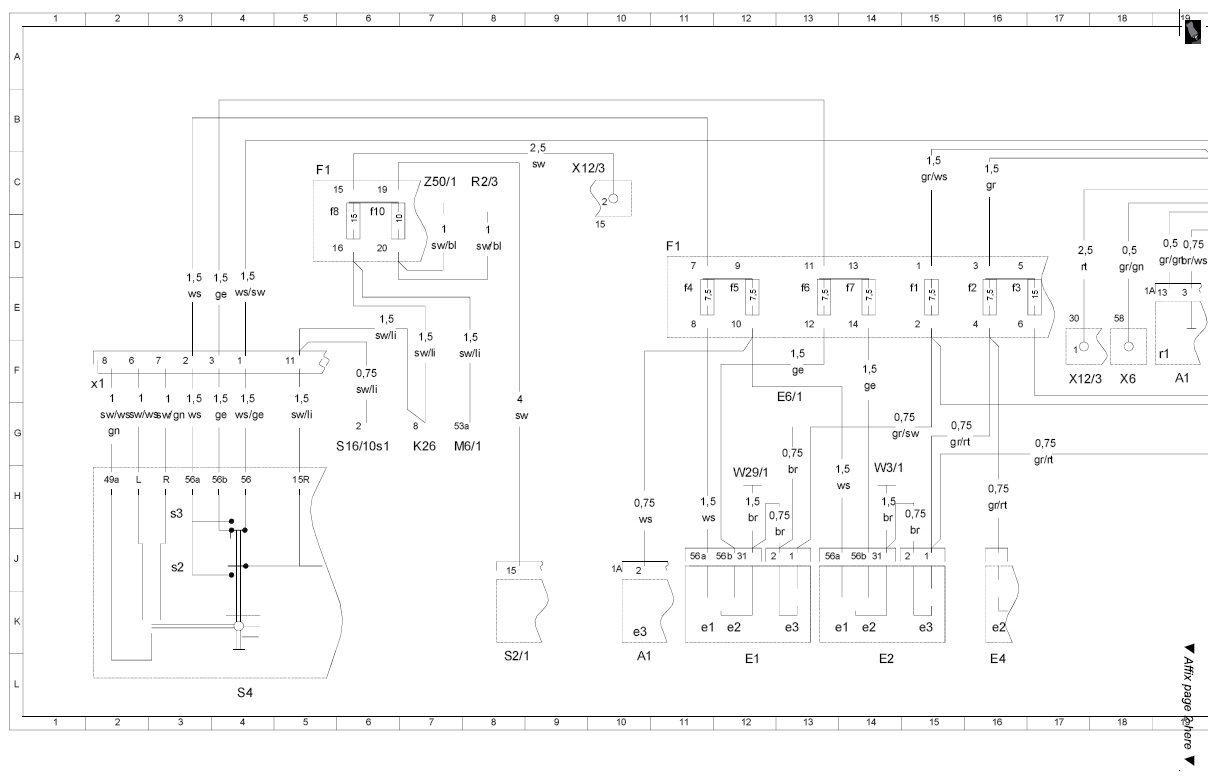

| A1 |
Instrument cluster |
10 L |
| A1 |
Instrument cluster |
19 F |
| A1 |
Instrument cluster |
23 L |
| A1e3 |
High beam indicator lamp |
10 K |
| A1e53 |
Front fog lamps indicator lamp |
22 K |
| A1r1 |
Instrument illumination variable resistor |
19 F |
| E1 |
Left front lamp unit |
12 L |

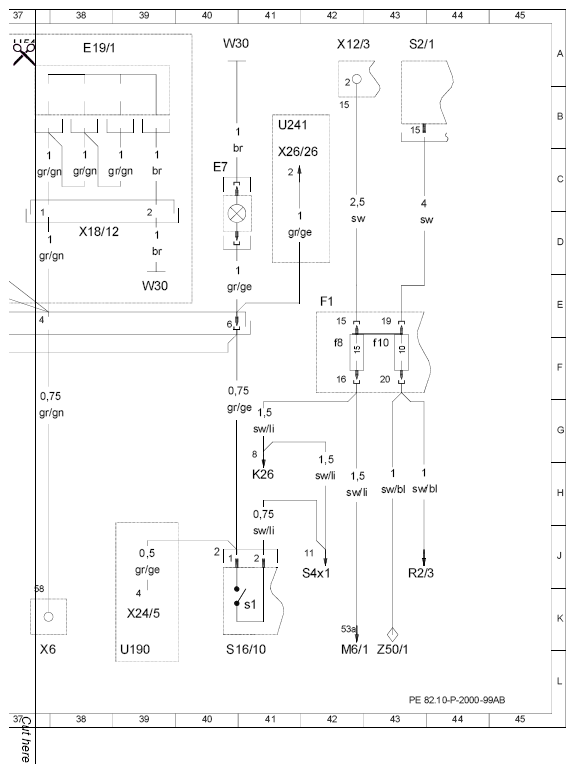

| E19/1 |
Left license plate lamp |
36 A |
| E19/1 |
Left license plate lamp |
38 A |
| E19/2 |
Right license plate lamp |
35 A |
| E1e1 |
Left high beam |
11 K |
| E1e2 |
Left low beam |
12 K |
| E1e3 |
Left standing and parking lamp |
13 K |
| E2 |
Right front lamp unit |
14 L |
| E21 |
Center high-mounted stop lamp |
30 L |
| E2e1 |
Right high beam |
13 K |
| E2e2 |
Right low beam |
14 K |
| E2e3 |
Right standing and parking lamp |
15 K |
| E3 |
Left taillamp |
28 L |
| E3/1 |
Rear fog lamp |
25 A |
| E3/1 |
Rear fog lamp |
25 L |
| E3e1 |
Left turn signal lamp |
28 K |
| E3e2 |
Left taillamp and parking lamp |
27 K |
| E3e4 |
Left stop lamp |
29 K |
| E4 |
Right taillamp |
16 L |
| E4 |
Right taillamp |
32 L |
| E4e1 |
Right turn signal lamp |
32 K |
| E4e2 |
Right taillamp and parking lamp |
16 K |
| E4e4 |
Right stop lamp |
33 K |
| E5/1 |
Left front fog lamp |
21 L |
| E5/2 |
Right fog lamp |
20 L |
| E6/1 |
Left turn signal lamp |
13 G |
| E7 |
Backup lamp |
40 C |
| F1 |
Fuse box |
5 C |
| F1 |
Fuse box |
11 D |
| F1 |
Fuse box |
42 E |
| F1f1 |
Fuse 1 |
15 E |
| F1f10 |
Fuse 10 |
6 D |
| F1f10 |
Fuse 10 |
43 F |
| F1f2 |
Fuse 2 |
16 E |
| F1f3 |
Fuse 3 |
16 E |
| F1f4 |
Fuse 4 |
11 E |
| F1f5 |
Fuse 5 |
12 E |
| F1f6 |
Fuse 6 |
13 E |
| F1f7 |
Fuse 7 |
14 E |
| F1f8 |
Fuse 8 |
5 D |
| F1f8 |
Fuse 8 |
42 F |
| F2 |
Fuse box (8 fuses) |
34 H |
| F2f8 |
Fuse 8 |
34 H |
| K26 |
Wiper system relay |
7 G |
| K26 |
Wiper system relay |
41 H |
| K52 |
Rear fog lamp cutout relay |
26 C |
| M6/1 |
Wiper motor |
7 G |
| M6/1 |
Wiper motor |
42 L |
| R2/3 |
Right washer nozzle heater |
8 C |
| R2/3 |
Right washer nozzle heater |
43 J |

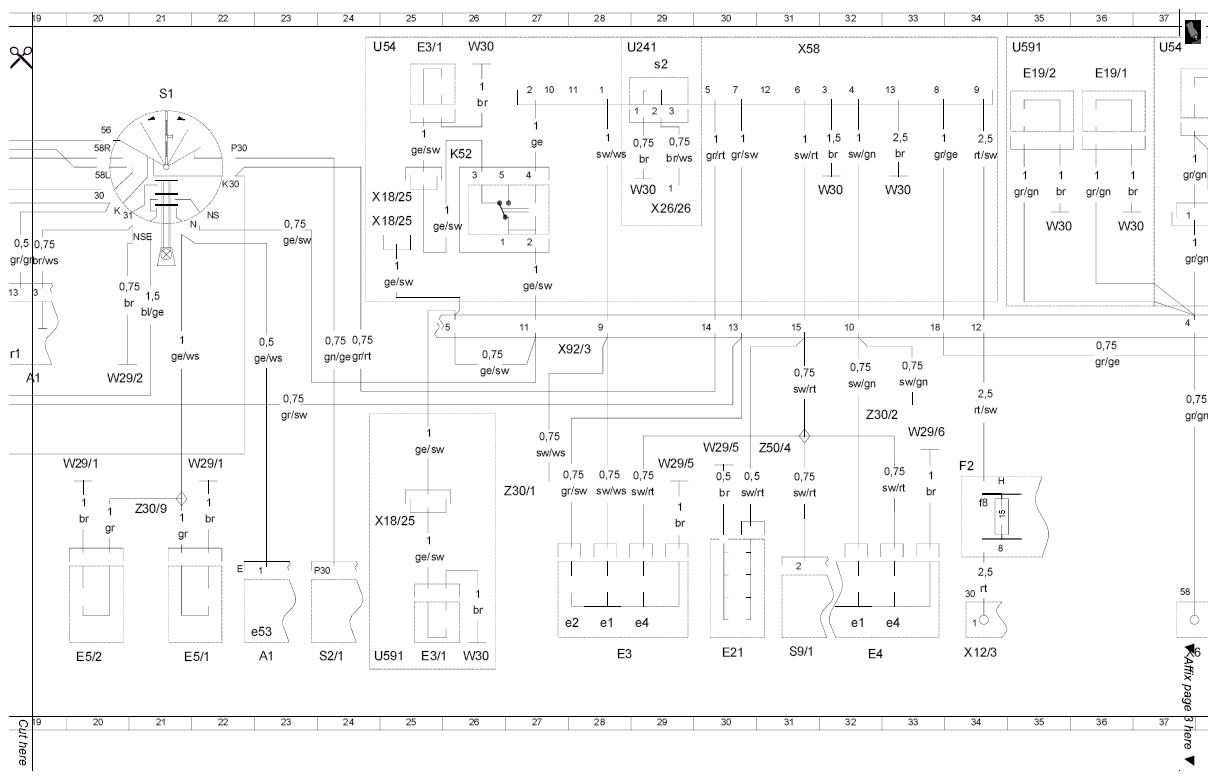

| S1 |
Light switch module |
21 B |
| S16/10 |
Gear recognition switch (voltage coded) |
40 L |
| S16/10s1 |
Backup lamp switch |
5 G |
| S16/10s1 |
Backup lamp switch |
41 K |
| S2/1 |
Ignition/starter switch |
8 L |
| S2/1 |
Ignition/starter switch |
24 L |
| S2/1 |
Ignition/starter switch |
43 A |
| S4 |
Combination switch |
4 L |
| S4s2 |
Headlamp flasher switch |
3 J |
| S4s3 |
Low beam switch |
3 H |
| S4x1 |
Combination switch connector |
2 F |
| S4x1 |
Combination switch connector |
42 J |
| S9/1 |
Stop lamp switch |
31 L |
| U190 |
Valid for APS |
39 L |
| U241 |
Valid for BA [RFH] |
28 A |
| U241 |
Valid for BA [RFH] |
41 B |
| U54 |
Valid for trailer hitch |
24 A |
| U54 |
Valid for trailer hitch |
37 A |
| U591 |
Not valid for trailer hitch |
24 L |
| U591 |
Not valid for trailer hitch |
35 A |
| W29/1 |
Ground (left A-pillar) |
12 H |
| W29/1 |
Ground (left A-pillar) |
19 H |
| W29/1 |
Ground (left A-pillar) |
21 H |
| W29/2 |
Ground (right A-pillar) |
20 F |
| W29/5 |
Ground (left rear pillar) |
29 H |
| W29/5 |
Ground (left rear pillar) |
30 G |
| W29/6 |
Ground (right rear pillar) |
33 G |
| W3/1 |
Ground (right front wheelhouse) |
14 H |
| W30 |
Ground (frame) |
26 L |
| W30 |
Ground (frame) |
26 A |
| W30 |
Ground (frame) |
28 C |
| W30 |
Ground (frame) |
31 C |
| W30 |
Ground (frame) |
33 C |
| W30 |
Ground (frame) |
35 D |
| W30 |
Ground (frame) |
36 D |
| W30 |
Ground (frame) |
39 E |
| W30 |
Ground (frame) |
40 A |
| X12/3 |
Circuit 30, 15, 61 terminal block (3-pin) |
9 C |
| X12/3 |
Circuit 30, 15, 61 terminal block (3-pin) |
17 F |
| X12/3 |
Circuit 30, 15, 61 terminal block (3-pin) |
34 L |
| X12/3 |
Circuit 30, 15, 61 terminal block (3-pin) |
42 A |
| X18/12 |
License plate lamp connector |
38 D |
| X18/25 |
Rear fog lamp connector |
24 D |
| X18/25 |
Rear fog lamp connector |
24 C |
| X18/25 |
Rear fog lamp connector |
24 J |
| X24/5 |
APS/MWH [HLS] connector |
39 K |
| X26/26 |
BA [RFH] connector |
29 D |
| X26/26 |
BA [RFH] connector |
41 C |
| X58 |
Trailer hitch socket (13-pin) |
31 A |
| X58s2 |
Backup assist shutoff microswitch |
29 A |
| X6 |
Circuit 58 terminal block (2-pin) |
18 F |
| X6 |
Circuit 58 terminal block (2-pin) |
37 L |
| X92/3 |
Frame connector (22-pin) |
27 F |
| Z30/1 |
Left turn signal indicator connector sleeve |
26 H |
| Z30/2 |
Right turn signal indicator connector sleeve |
32 G |
| Z30/9 |
Left and right fog lamp connector sleeve |
21 H |
| Z50/1 |
Connector sleeve 1 |
7 C |
| Z50/1 |
Connector sleeve 1 |
43 L |
| Z50/4 |
Connector sleeve 4 |
31 G |
