| A0 |
Color code key |
L15 |
| F32 |
Front prefuse |
L2 |
| F32f1 |
Prefuse 1 |
K2 |
| N10/2 |
Rear signal acquisition and actuation module (SAM |
A2 |
| N10/2 |
Rear signal acquisition and actuation module (SAM |
A15 |
| N10/2f10 |
Fuse 10 |
C13 |
| N10/2kE |

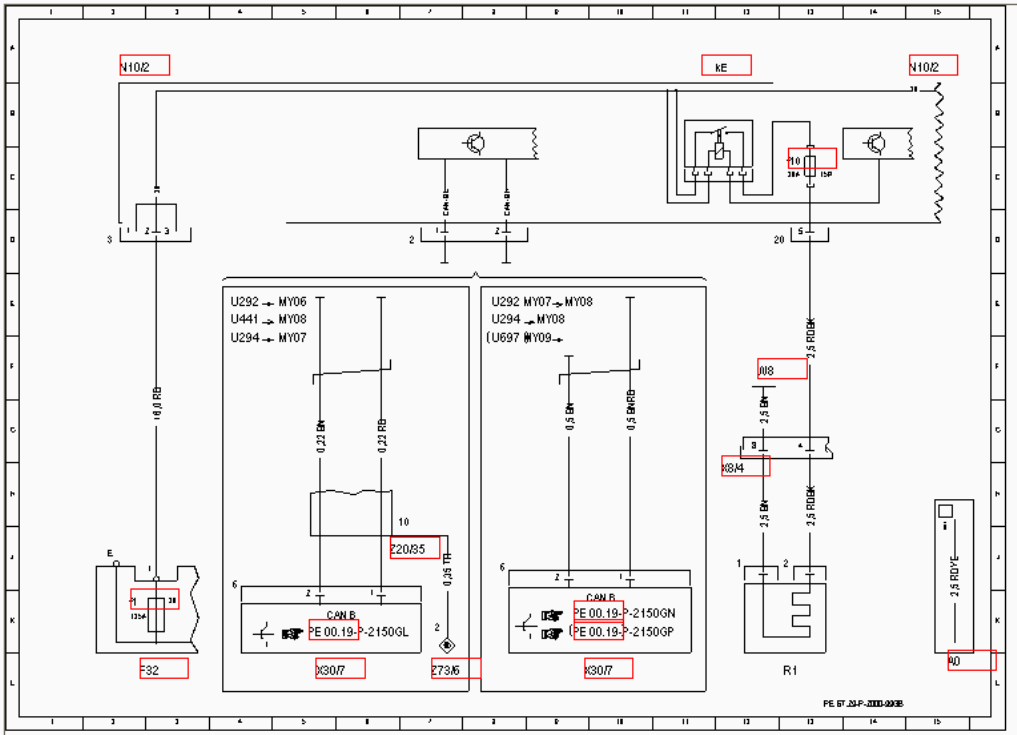

Heated rear window relay |
A11 |
| R1 |
Heated rear window |
L13 |
| U292 |
Valid for all except G55 AMG and special protection vehicles |
E4 |
| U292 |
Valid for all except G55 AMG and special protection vehicles |
E8 |
| U294 |
Valid for G55 AMG |
F4 |
| U294 |
Valid for G55 AMG |
E8 |
| U441 |
Valid for special protection |
E4 |
| U697 |
Valid for all |
F8 |
| W8 |
Ground (luggage compartment toolbox) |
F12 |
| X30/7 |
Voltage distributor (CAN) connector |
L5 |
| X30/7 |
Voltage distributor (CAN) connector |
L10 |
| X8/4 |
Rear-end door connector (8-pin) |
H12 |
| Z20/35 |
CAN bus screening end |
J7 |
| Z73/6 |
CAN bus shielding solder terminal |
L7 |
