Seat belt buckle switch, component description - GF91.60-P-4045G
MODEL 463.306/336/346 as of model year 2011/YoM 10
MODEL 463.202/222/236/237 as of model year 2009/YoM 08
MODEL 463.247/248/249/254/270/271/303/340/341 as of model year 2007

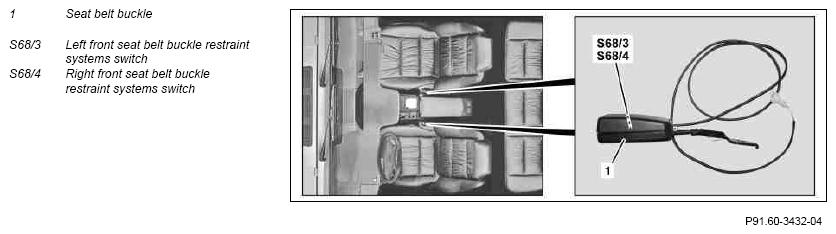

Location
The seat belt buckle switches are integrated in the relevant seat belt buckle of the front seats.
Task
The seat belt buckle switches monitor the insertion of the belt latch into the seat belt buckles.
The seat belt buckle switches are read in directly by the restraint systems control unit (N2/7).
