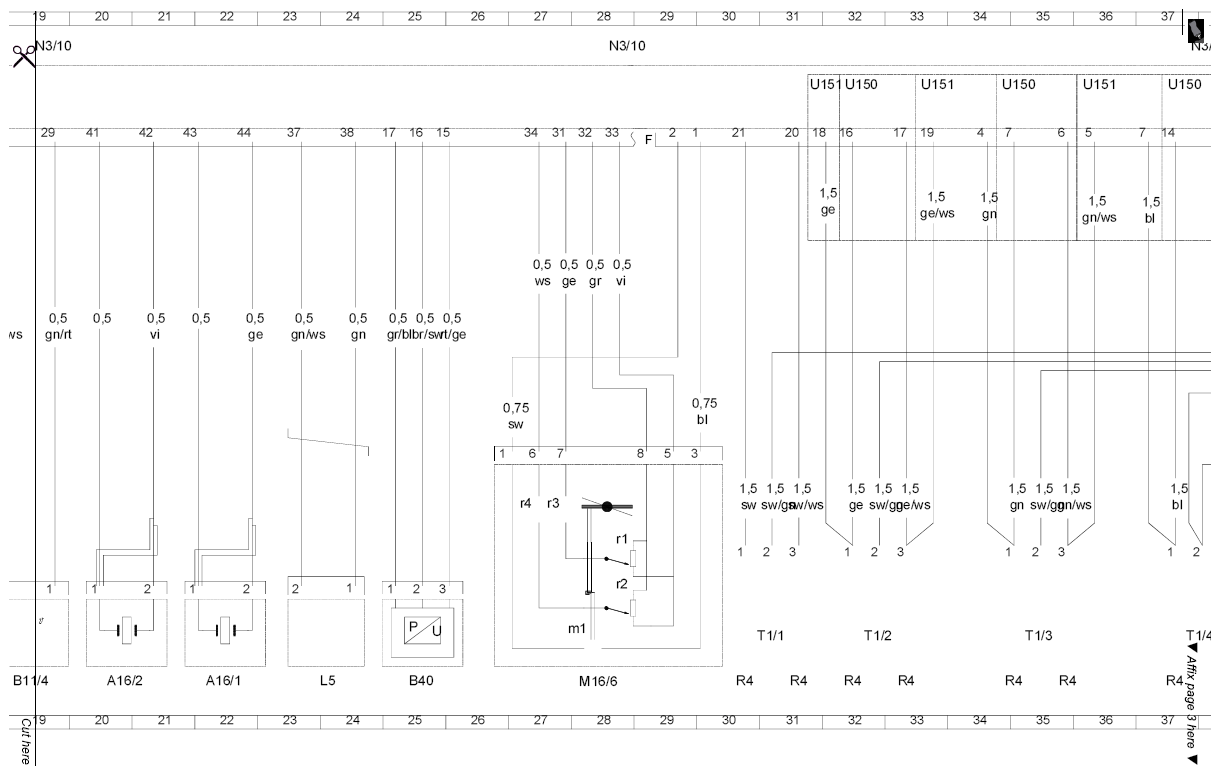

| A16/1 |
Right knock sensor 1 |
22L |
| A16/2 |
Left knock sensor 2 |
20L |

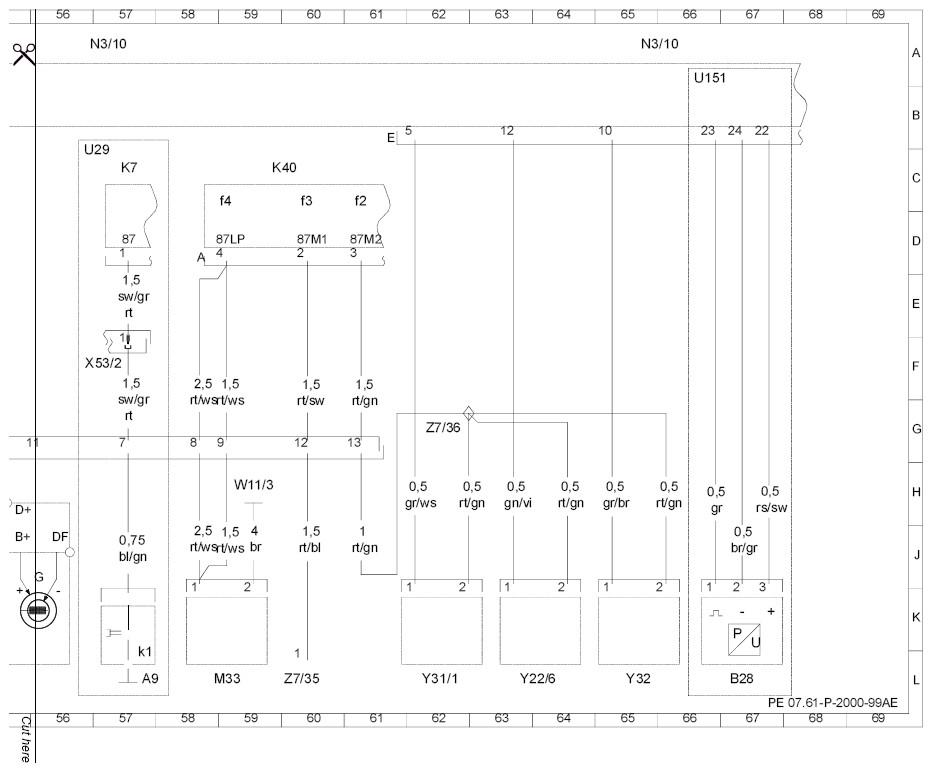

| A9 |
AC compressor |
57L |
| A9k1 |
Electromagnetic clutch |
57L |
| B11/4 |
Coolant temperature sensor |
19L |

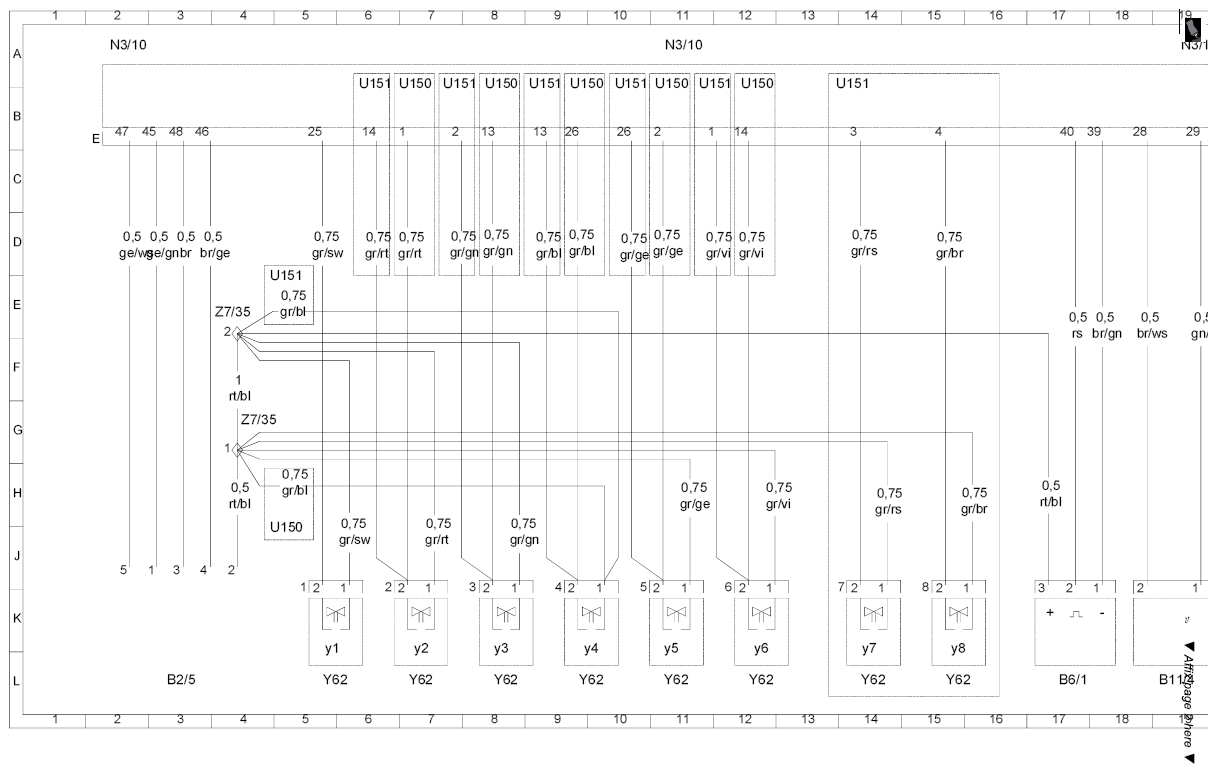

| B2/5 |
Hot film MAF sensor |
3L |
| B28 |
Pressure sensor |
67L |
| B40 |
Oil sensor (oil level, temperature and quality) |
25L |
| B6/1 |
Camshaft Hall-effect sensor |
17L |

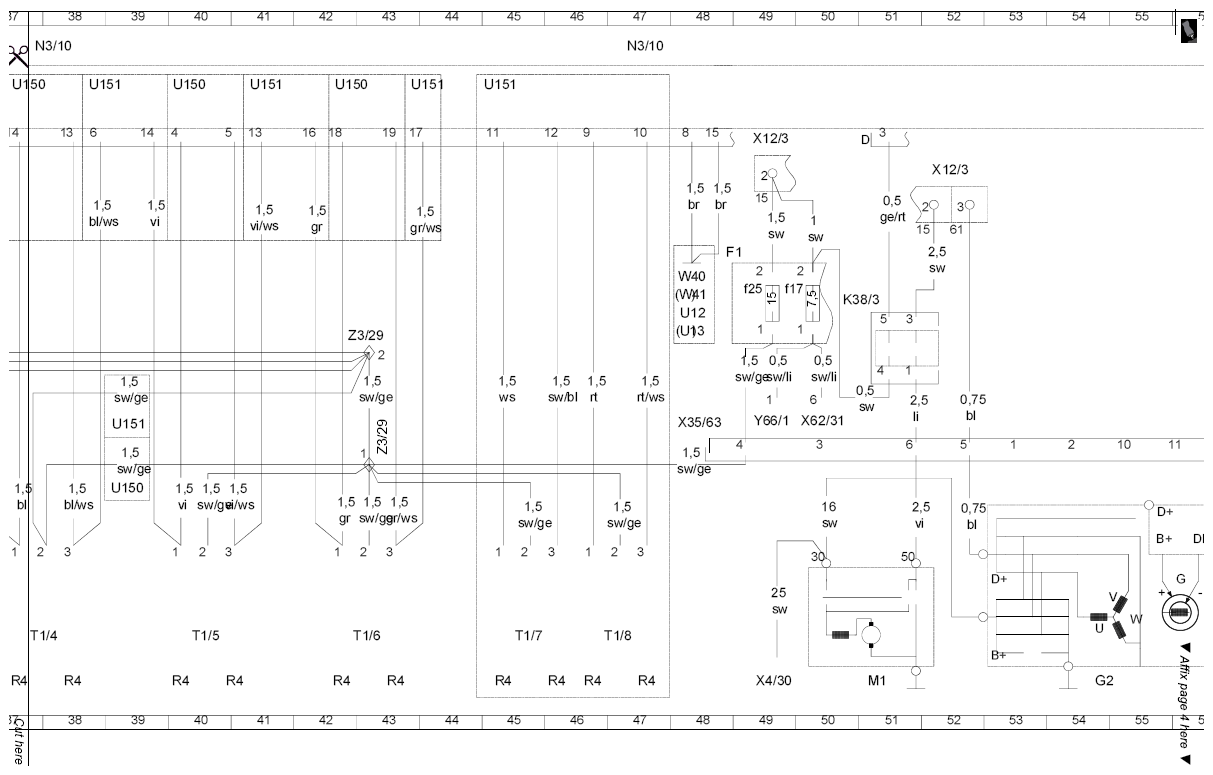

| F1 |
Fuse box |
48D |
| F1f17 |
Fuse 17 |
49E |
| F1f25 |
Fuse 25 |
49E |
| G2 |
Generator |
54L |
| K38/3 |
Starter lock-out relay module |
50E |
| K40 |
AIR pump relay |
59C |
| K40f2 |
EDC, 87 M2 fuse |
61D |
| K40f3 |
87 M1 fuse |
60D |
| K40f4 |
AIR pump fuse |
59D |
| K7 |
AAC compressor relay |
57C |
| L5 |
Crankshaft position sensor |
23L |
| M1 |
Starter |
51L |
| M16/6 |
Throttle valve actuator |
28L |
| M16/6m1 |
Actuator motor |
27K |
| M16/6r1 |
Throttle valve actual value potentiometer |
28J |
| M16/6r2 |
Drive actual value potentiometer |
28K |
| M16/6r3 |
Actual value potentiometer (sliding contact 1) |
27H |
| M16/6r4 |
Actual value potentiometer (sliding contact 2) |
27H |
| M33 |
AIR pump |
58L |
| N3/10 |
Engine control module (ME-SFI [ME]) |
2A |
| N3/10 |
Engine control module (ME-SFI [ME]) |
11A |
| N3/10 |
Engine control module (ME-SFI [ME]) |
19A |
| N3/10 |
Engine control module (ME-SFI [ME]) |
28A |
| N3/10 |
Engine control module (ME-SFI [ME]) |
37A |
| N3/10 |
Engine control module (ME-SFI [ME]) |
47A |
| N3/10 |
Engine control module (ME-SFI [ME]) |
56A |
| N3/10 |
Engine control module (ME-SFI [ME]) |
65A |
| R4 |
Spark plugs |
30L |
| R4 |
Spark plugs |
31L |
| R4 |
Spark plugs |
32L |
| R4 |
Spark plugs |
33L |
| R4 |
Spark plugs |
34L |
| R4 |
Spark plugs |
35L |
| R4 |
Spark plugs |
37L |
| R4 |
Spark plugs |
38L |
| R4 |
Spark plugs |
40L |
| R4 |
Spark plugs |
40L |
| R4 |
Spark plugs |
42L |
| R4 |
Spark plugs |
43L |
| R4 |
Spark plugs |
45L |
| R4 |
Spark plugs |
46L |
| R4 |
Spark plugs |
46L |
| R4 |
Spark plugs |
47L |
| T1/1 |
Ignition coil 1 |
30K |
| T1/2 |
Ignition coil 2 |
32K |
| T1/3 |
Ignition coil 3 |
35K |
| T1/4 |
Ignition coil 4 |
37K |
| T1/5 |
Ignition coil 5 |
40K |
| T1/6 |
Ignition coil 6 |
42K |
| T1/7 |
Ignition coil 7 |
45K |
| T1/8 |
Ignition coil 8 |
46K |
| U12 |
Valid for LHS |
48E |
| U13 |
Valid for right-hand steering |
48F |
| U150 |
Valid for engine 112 |
4J |
| U150 |
Valid for engine 112 |
6B |
| U150 |
Valid for engine 112 |
8B |
| U150 |
Valid for engine 112 |
9B |
| U150 |
Valid for engine 112 |
11B |
| U150 |
Valid for engine 112 |
12B |
| U150 |
Valid for engine 112 |
32B |
| U150 |
Valid for engine 112 |
34B |
| U150 |
Valid for engine 112 |
37B |
| U150 |
Valid for engine 112 |
39H |
| U150 |
Valid for engine 112 |
40B |
| U150 |
Valid for engine 112 |
42B |
| U151 |
Valid for engine 113 |
4E |
| U151 |
Valid for engine 113 |
6B |
| U151 |
Valid for engine 113 |
7B |
| U151 |
Valid for engine 113 |
9B |
| U151 |
Valid for engine 113 |
10B |
| U151 |
Valid for engine 113 |
11B |
| U151 |
Valid for engine 113 |
13B |
| U151 |
Valid for engine 113 |
31B |
| U151 |
Valid for engine 113 |
33B |
| U151 |
Valid for engine 113 |
36B |
| U151 |
Valid for engine 113 |
38B |
| U151 |
Valid for engine 113 |
39G |
| U151 |
Valid for engine 113 |
41B |
| U151 |
Valid for engine 113 |
43B |
| U151 |
Valid for engine 113 |
44B |
| U151 |
Valid for engine 113 |
66B |
| U29 |
Valid for AC |
56C |
| W11/3 |
Ground (engine-left side) |
59H |
| W40 |
Ground (ICS [CNS] bracket) |
48E |
| W41 |
Ground (electronics box) |
48E |
| X12/3 |
Terminal block (circuit 30, 15, 61 (3-pin) |
49B |
| X12/3 |
Terminal block (circuit 30, 15, 61 (3-pin) |
52C |
| X35/63 |
Control module box/engine separation point |
48G |
| X4/30 |
Terminal block (circuit 30, engine) |
49L |
| X53/2 |
Circuit 15 AAC connector |
56F |
| X62/31 |
Differential lock connector |
50G |
| Y22/6 |
Variable intake manifold switchover valve |
63L |
| Y31/1 |
EGR [ARF] vacuum transducer |
62L |
| Y32 |
Air pump switchover valve |
65L |
| Y62 |
Injectors (LH-SFI, HFM-SFI, PEC [LH, HFM, PMS]) |
5L |
| Y62 |
Injectors (LH-SFI, HFM-SFI, PEC [LH, HFM, PMS]) |
7L |
| Y62 |
Injectors (LH-SFI, HFM-SFI, PEC [LH, HFM, PMS]) |
8L |
| Y62 |
Injectors (LH-SFI, HFM-SFI, PEC [LH, HFM, PMS]) |
9L |
| Y62 |
Injectors (LH-SFI, HFM-SFI, PEC [LH, HFM, PMS]) |
11L |
| Y62 |
Injectors (LH-SFI, HFM-SFI, PEC [LH, HFM, PMS]) |
12L |
| Y62 |
Injectors (LH-SFI, HFM-SFI, PEC [LH, HFM, PMS]) |
14L |
| Y62 |
Injectors (LH-SFI, HFM-SFI, PEC [LH, HFM, PMS]) |
15L |
| Y62y1 |
Injector (cylinder 1) |
5L |
| Y62y2 |
Injector (cylinder 2) |
7L |
| Y62y3 |
Injector (cylinder 3) |
8L |
| Y62y4 |
Injector (cylinder 4) |
9L |
| Y62y5 |
Injector (cylinder 5) |
11L |
| Y62y6 |
Injector (cylinder 6) |
12L |
| Y62y7 |
Injector (cylinder 7) |
14L |
| Y62y8 |
Injector (cylinder 8) |
15L |
| Y66/1 |
Reverse/parking lock valve |
49G |
| Z3/29 |
Circuit 15 connector sleeve (fused) |
42F |
| Z3/29 |
Circuit 15 connector sleeve (fused) |
43G |
| Z7/35 |
Circuit 87M1e connector sleeve |
4E |
| Z7/35 |
Circuit 87M1e connector sleeve |
4G |
| Z7/35 |
Circuit 87M1e connector sleeve |
60L |
| Z7/36 |
Circuit 87M2e connector sleeve |
62G |
