ME-SFI control unit, design - GF07.61-P-5000-03AM

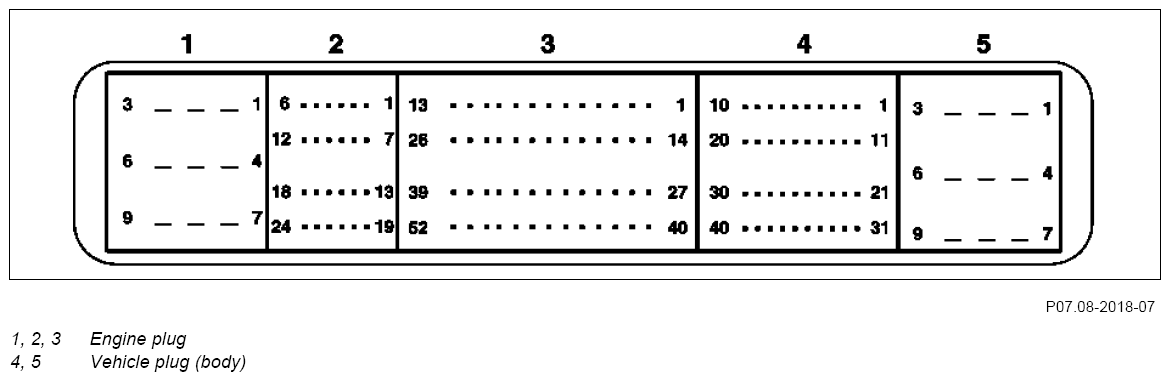

The cables are connected by means of 5 plugs.
The ME control unit (N3/10) consists of aluminum and is designed as a shell concept unitary housing. It is designed for installation in a protective housing (e.g. relay and fuse box).
A pressure sensor is integrated in the ME 2.8.1 control unit to measure the absolute pressure (atmospheric pressure).
