Crankshaft position sensor, location - GF07.04-P-4116-02AM

The crankshaft position sensor is located at the transmission end below the left cylinder bank.

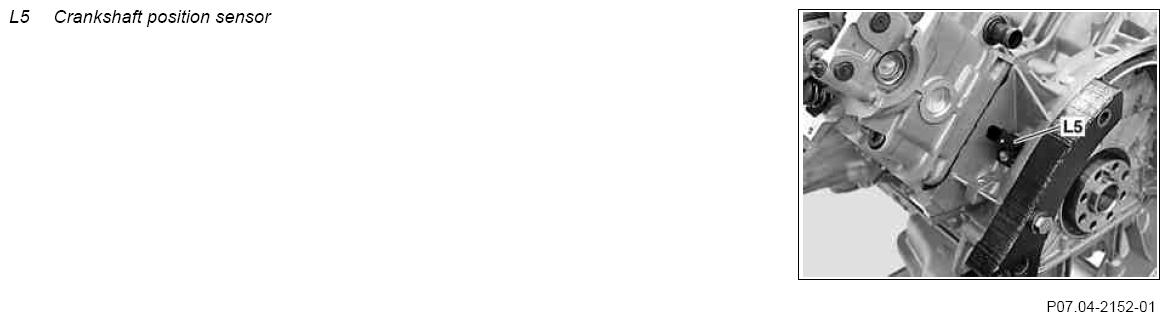

Fig 1: Identifying Crankshaft Position Sensor
G07870864Courtesy of MERCEDES-BENZ USA
