Fuel pump relay, function - GF54.15-P-4105-02AM
MODEL 211, 219 with ENGINE 113.990
MODEL 215, 220 with ENGINE 113.991
MODEL 230 with ENGINE 113.992 /995 up to Model Year 2008
MODEL 463 up to 31.5.12 with ENGINE 113.993

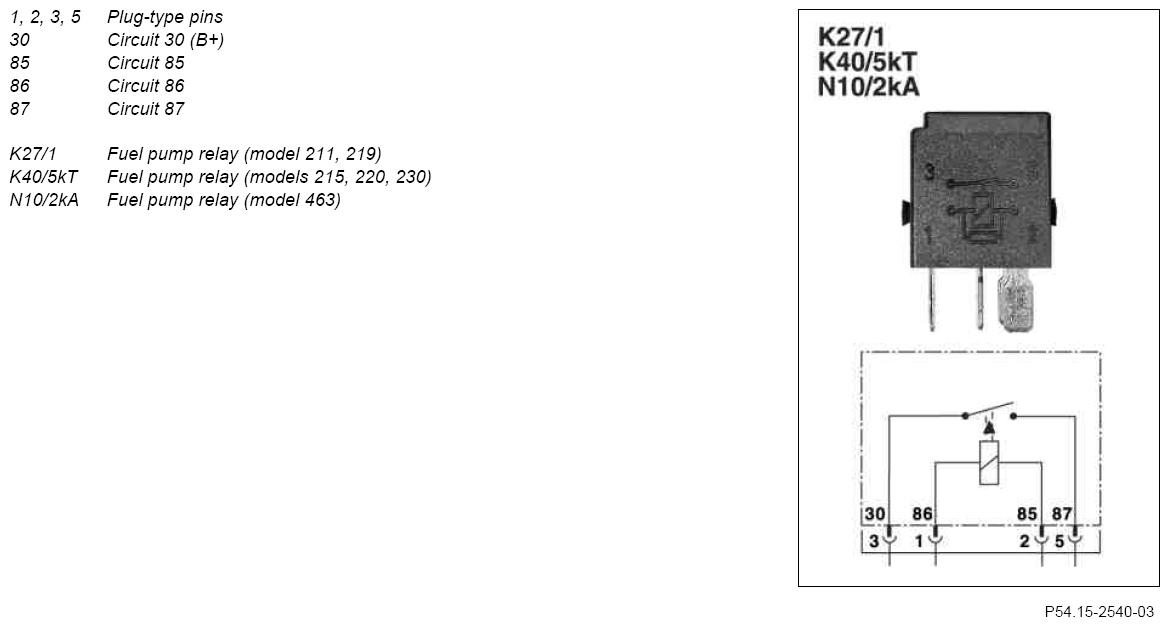

If the relay is actuated by the ME-SFI [ME] control unit (N3/10) by a ground signal at "circuit 86", it closes its power contact. When the power contact is closed the fuel pump control unit (N118) and the Fuel pump(s) (M3) are connected via "circuit 87" with voltage from "circuit 30".
The two fuel pumps are connected in parallel on model 211, 219.
