Front SAM control unit with fuse and relay module, location - GF54.21-P-4131-01GB

MODEL 463.243 /244 /245 /246 /247 /248 /249 /250 /254 /270 /271 /309 /322 /323 /332 /333 /303 /340 /341 up to 31.5.12

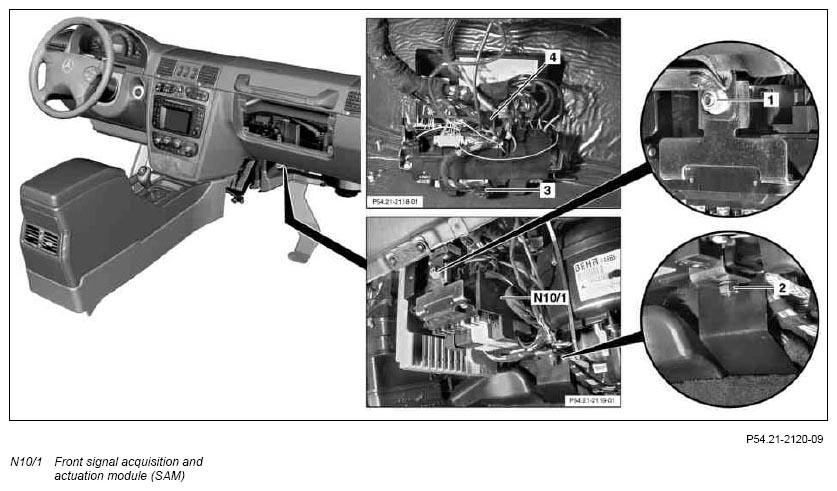

Fig 1: Identifying Front Signal Acquisition And Actuation Module
G07742080Courtesy of MERCEDES-BENZ USA
