Control units position - GF54.21-P-3100-01CB

MODEL 463.243 /244 /245 /246 /247 /248 /249 /250 /254 /270 /271 /303 /309 /322 /323 /332 /333 /340 /341 ## up to 156037

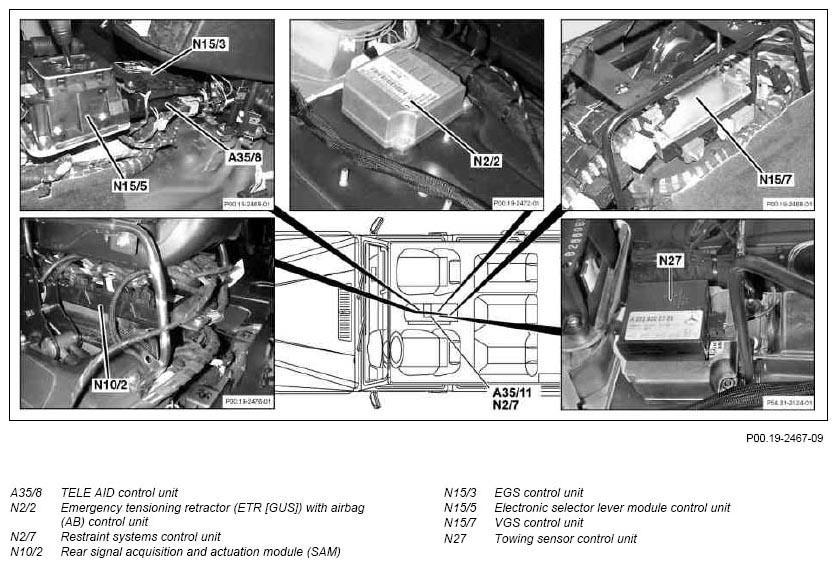

Control units in the area of the center console

Fig 1: Identifying Control Units Location (Control Units In Area Of Center Console)
G07742070Courtesy of MERCEDES-BENZ USA

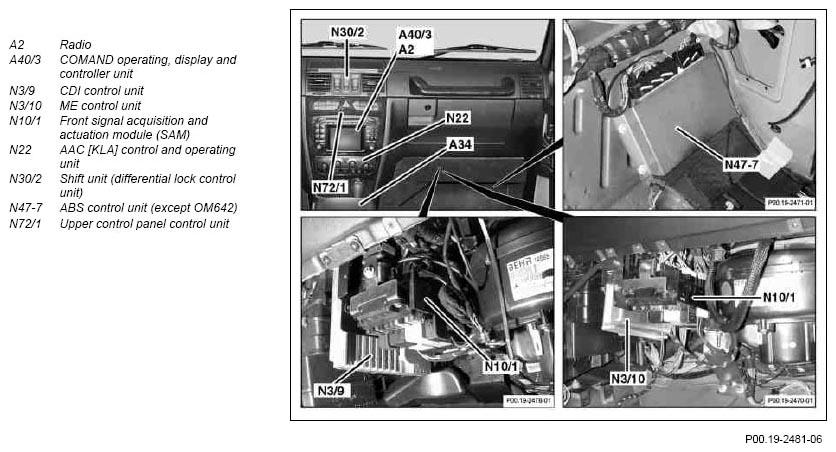

Control units in the area of cockpit

Fig 2: Identifying Control Units Location (Control Units In Area Of Cockpit)
G07742071Courtesy of MERCEDES-BENZ USA

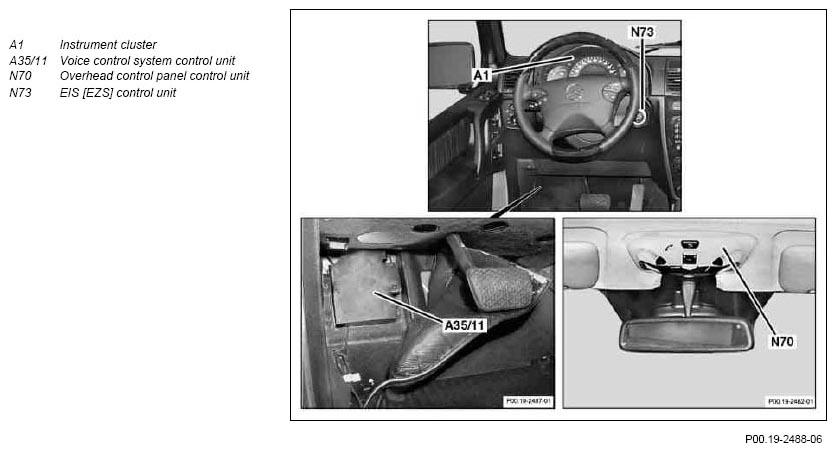

Control units in the area of the cockpit

Fig 3: Identifying Control Units Location (Control Units In Area Of Cockpit)
G07742072Courtesy of MERCEDES-BENZ USA

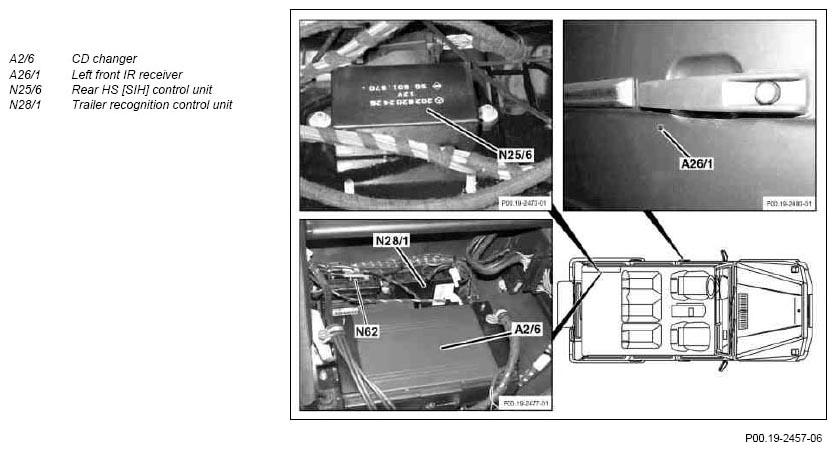

Control units in the area of trunk as well as driver door

Fig 4: Identifying Control Units Location (Control Units In Area Of Trunk And Driver Door)
G07742073Courtesy of MERCEDES-BENZ USA

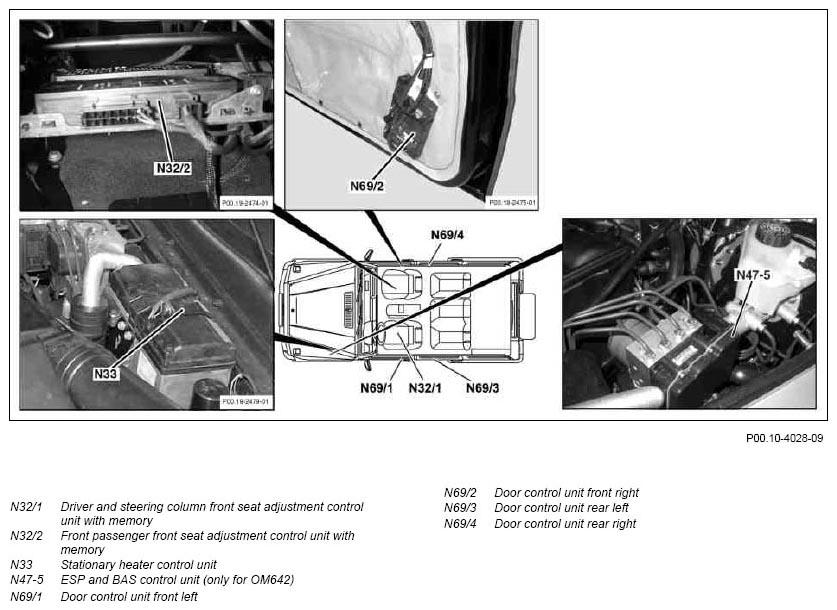

Control units in the area of the doors and seats as well as engine compartment

Fig 5: Identifying Control Units Location (Control Units In Area Of Doors, Seats And Engine Compartment)
G07742074Courtesy of MERCEDES-BENZ USA
