Component description for front SAM control unit with fuse and relay module - GF54.21-P-6070G

MODEL 463.306/336/346 as of model year 2011/YoM 10

MODEL 463.202/222/236/237 as of model year 2009/YoM 08

MODEL 463.247/248/249/254 up to 31.8.08 as of model year 2007

MODEL 463.270/271/303/340/341 as of model year 2007

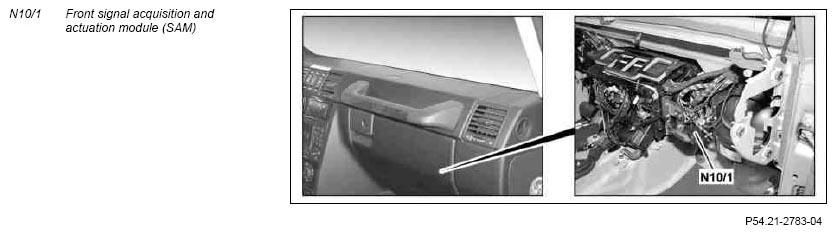

Location

The front SAM is located on the right next to the air conditioning box.

Task

The front SAM is connected for exchanging data over the interior CAN (CAN-B).

Limit switches supply systems and control units with voltage to match the function sequence. Requests are notified to the front SAM control unit over the interior CAN or by the switch and sensor signals.

The individual components are protected via fuses contained in the fuse and relay block.

Control of following systems

• Wiper system
• Exterior lights (front)
• Footwell illumination (as of 1.11.08)

Discrete inputs

• Refrigerant pressure and temperature sensor (B12/2)
• Outside temperature indicator temperature sensor (B14)
• Light switch module (S1)
• Left front brake pad contact sensor (S10/1)
• Right front brake pad contact sensor (S10/2)
• Left rear brake pad contact sensor (S10/3)
• Brake fluid indicator switch (S11)
• Coolant level indicator switch (S41)
• Windshield washer system fluid level indicator switch (S42)
• Alternator (G2)

Discrete outputs

• Refrigerant compressor control valve (A9)
• Left front lamp unit (E1)
• Right front lamp unit (E2)
• Left front fog lamp (E5/1)
• Right front fog lamp (E5/2)
• Left turn signal lamp (E6/1)
• Right turn signal lamp (E6/2)
• Left front side marker lamp (E6/9)

  (with code (ZU8) USA version)

• Right front side marker lamp (E6/10)

  (with code (ZU8) USA version)

• Rear dome lamp (E15/3)

  (with model 463.236/237/341/270/271 as of 1.9.08, model 463.346)

• Right front footwell lamp (E17/15)

  (as of 1.11.08 with code (FR1) Ambiance illumination)

• Left front footwell lamp (E17/16) (as of 1.11.08)

  (as of 1.11.08 with code (FR1) Ambiance illumination)

• Left rear footwell lamp (E17/23) (as of 1.11.08)

  (as of 1.11.08 with code (FR1) Ambiance illumination)

• Right rear footwell lamp (E17/24) (as of 1.11.08)

  (as of 1.11.08 with code (FR1) Ambiance illumination)

• Center console ambiance illumination (E43/6)

  (as of 1.9.08 with code (FR1) Ambiance illumination)

• Horn 1 (H2)
• Horn 2 (H2/1)
• Windshield washer fluid pump (M5/1)
• SRA pump (M5/2)
• Rear-end door washer fluid pump (M5/3)
• Wiper motor (M6/1)
• Coolant circulation pump (M13)
• Left heated windshield washer nozzle (R2/2)
• Right washer nozzle heater (R2/3)

Switching the following relays

• Additional fan relay (stage 1 and 2) (K9)
• Heated windshield relay (K13/2)

  (with code (F49) Heated windshield)

• Fanfare horn relay (N10/1kl)
• Circuit 87 relay, chassis (N10/1kK)
• Wiper speed 1 and 2 relay (N10/1kL)
• Circuit 15R relay (N10/1kM)
• Circuit 15 relay, fuse box (8 fuses) (N10/1kN)
• Secondary air injection pump relay (N10/1kO) (with engine 273)
• Circuit 15 relay (N10/1kP)
• Wiper ON/OFF relay (N10/1kQ)
• Circuit 87 relay, engine (N10/1kR)
• Starter relay (N10/1kS)
