Lower control panel control module, location / task / design - GF54.21-P-4116T: Notes

MODELS 211.0 /2 /6

location

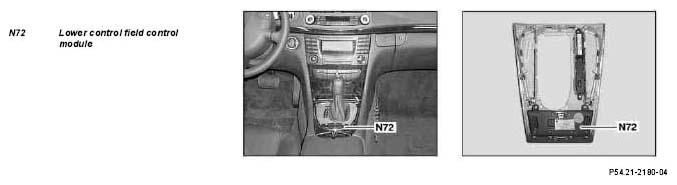

Fig 1: Identifying Lower Control Panel Control Module Location
G04984342
  Lower control panel control module, location The lower control panel control module (N72) is divided into groups of switches or buttons which are arranged on the center console around the gearshift lever or selector lever.
  Lower control panel control module, task   GF54.21-P-4116-01T
  Bottom control panel control unit design   GF54.21-P-4116-02T
