Fuel pump relay, location/task/design/function - GF54.15-P-4105
>>
Fuel pump relay, location/task/design/function - GF54.15-P-4105AM
>>
Fuel pump relay position - GF54.15-P-4105-01T
Fuel pump relay position - GF54.15-P-4105-01T

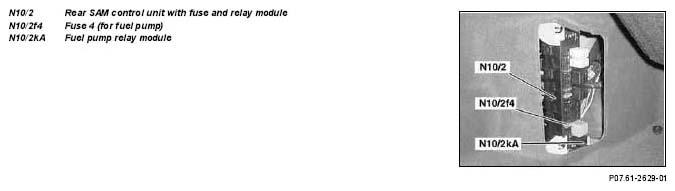

The fuel pump relay is located in the bottom left of the luggage compartment.
Fig 1: Identifying Fuel Pump Relay Position
