Engine diagnosis indicator lamp, location/task/function - GF54.30-P-4102AM
MODEL 211, 219 with ENGINE 113.990 except CODE (494) USA version
MODEL 215, 220 with ENGINE 113.991 except CODE (494) USA version
MODEL 230 with ENGINE 113.992 /995 except CODE (494) USA version
MODEL 463 with ENGINE 113.993 except CODE (491) USA version

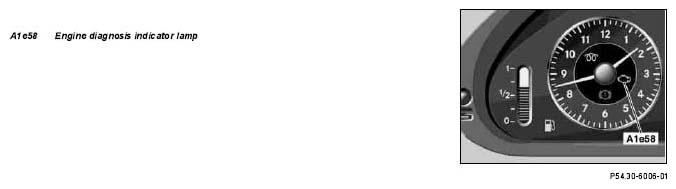

Shown on MODEL 211, 219
| Engine diagnosis indicator lamp, location | The indicator lamp is located in the instrument cluster (A1). | ||
| Model 215, 220 | GF54.30-P-4102-01AM | ||
| Model 230 | GF54.30-P-4102-01RA | ||
| Model 463 | GF54.30-P-4102-01GA | ||
| Engine diagnosis indicator lamp, task | The indicator lamp signals faults relevant to exhaust emissions to the driver. | ||
| Engine diagnosis indicator lamp, function | The indicator lamp is actuated by the ME-SFI [ME] control unit (N3/10) at the ground end when the engine is started. If there is no fault, the motor electronics control unit interrupts the actuation and the indicator lamp goes out. To check the bulb function it lights up for approx. 1 second when the ignition is switched "ON". |
