TIREFIT puncture sealing compound - check expiration date - AP40.10-P-4054R

MODEL 163, 164, 168, 169, 170, 171, 203, 209, 211, 216, 219, 221, 230, 240, 245, 414 except CODE (669) Spare tire on steel rim except CODE (679) Spare tire in structural wheel design except CODE (690) Emergency wheel except CODE (R66) Run-flat tires

Model 170, 171, 203, 230

model 209 without code (P98) Black Series

shown on model 230

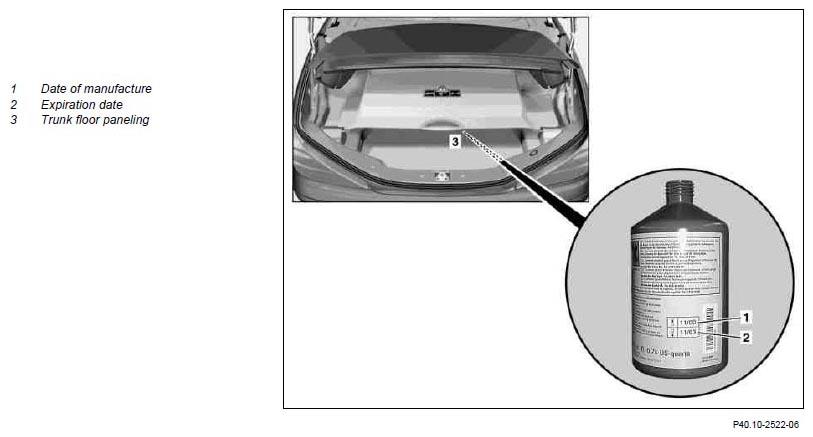

Fig 1: Locating Puncture Sealing Compound (Shown on Model 230)

G07288016

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 168

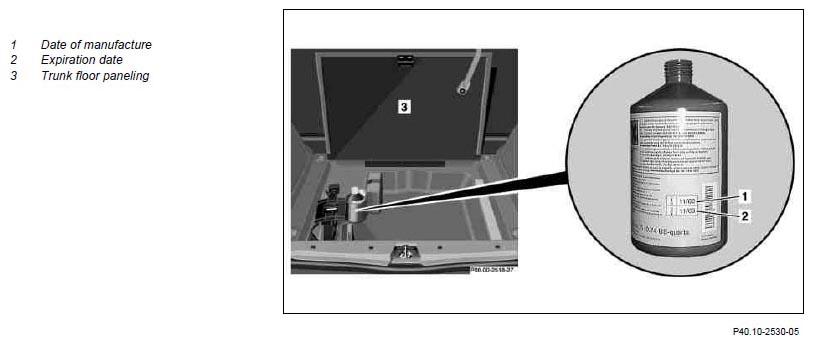

Fig 2: Locating Puncture Sealing Compound (Model 168)

G07288017

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 209 with code (P98) Black Series

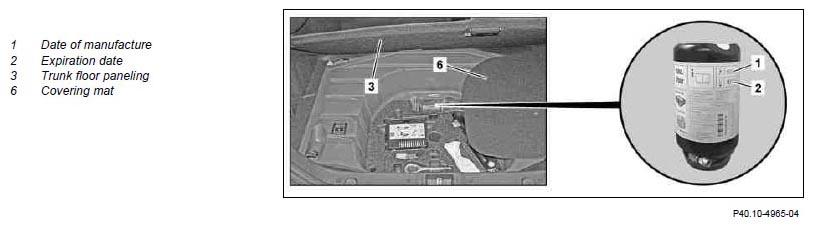

Fig 3: Locating Puncture Sealing Compound (Model 209)

G07288018

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 211.0

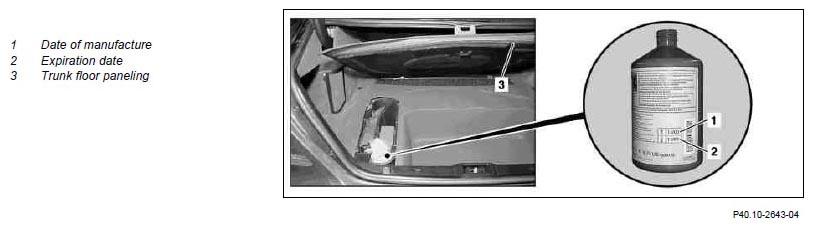

Fig 4: Locating Puncture Sealing Compound (Model 211.0)

G07288019

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 164, 211.2/6

Shown on model 211.2

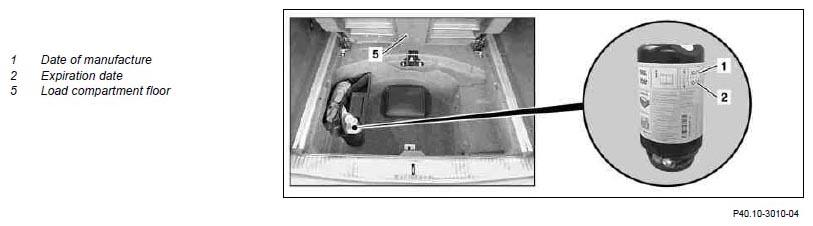

Fig 5: Locating Puncture Sealing Compound (Shown on Model 211.2)

G07288020

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 240

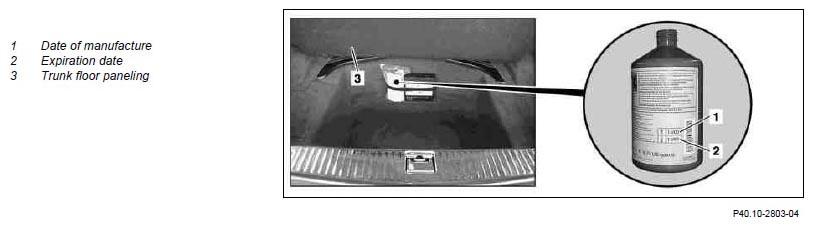

Fig 6: Locating Puncture Sealing Compound (Model 163, 169, 245, 414)

G07288021

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 163, 169, 245, 414

Illustrated on model 169

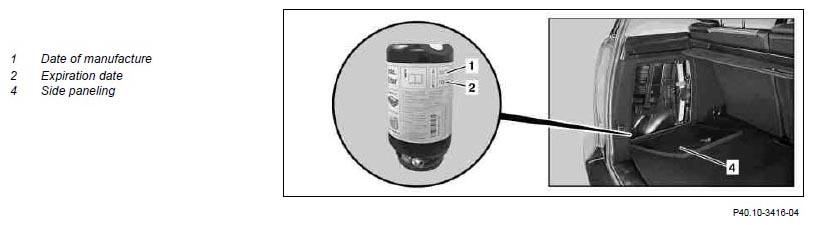

Fig 7: Locating Puncture Sealing Compound (Illustrated on Model 169)

G07288022

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 219.3

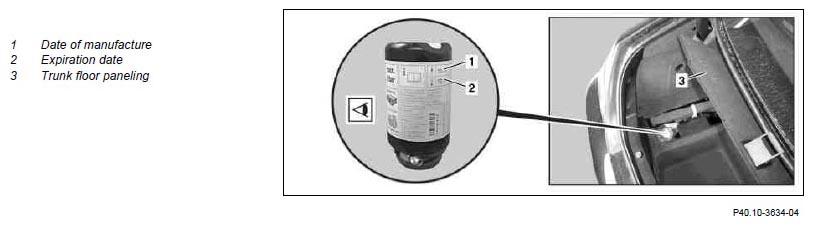

Fig 8: Locating Puncture Sealing Compound (Model 219.3)

G07288023

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 216, 221

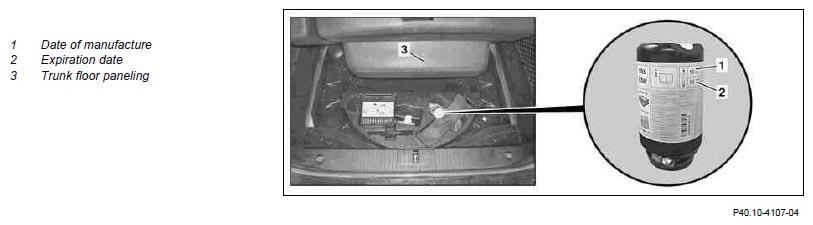

Fig 9: Locating Puncture Sealing Compound (Model 216, 221)

G07288024

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of poisoning caused by swallowing the TIREFIT emulsion. Risk of injury caused by skin contact and eye contact with the TIREFIT emulsion. Risk of fire caused by ignition of the TIREFIT emulsion	Do not swallow or come into contact with the TIREFIT tire sealant, which is an emulsion of rubber and terpene phenolic resin. No open fire or open light sources.	AS40.10-Z-0001-01A
1	Open trunk lid or liftgate	For model 211.6 the place where the TIREFIT tire repair kit is kept can vary depending on the vehicle body, see body manufacturer's operating manual.
2.1	Lift or remove trunk floor paneling (3)	Model 168, 170, 171, 203, 209, 211.0, 216, 219, 221, 230, 240
2.2	Lift load compartment floor (5)	Model 164, 211.2/6 For model 211.6 the place where the TIREFIT tire repair kit is kept can vary depending on the vehicle body, see body manufacturer's operating manual.
	Checking
3	Check expiration date (2) on the bottle.	Replace the TIREFIT tire sealant when the expiry date (2) is reached.
	TIREFIT tire sealant		AH40.10-P-0001-01A
		Dispose of used or obsolete TIREFIT tire sealant properly.
4	Install in the reverse order
