Remove/install loudspeakers in rear doors - AR82.62-P-7874T

MODEL 211.0/2

Shown on model 211.0 at left rear door

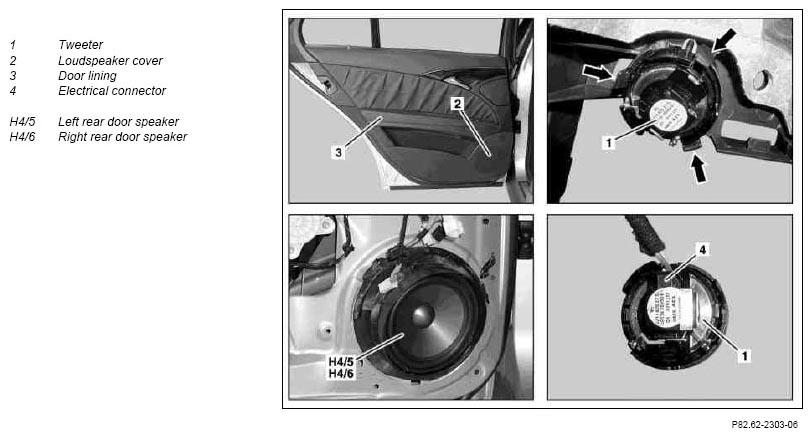

Fig 1: Identifying Rear Door Loudspeaker Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

MODIFICATION NOTES

15.1.04

Disconnect/connect/remove ground lead from battery

	Remove/Install
1	Unclip loudspeaker cover (2) from door lining (3) using assembly wedge		Figure
2	Unclip tweeter (1) from door lining (3) at latching hooks (arrows) and remove
3	Unplug electrical connector (4) and remove tweeter (1)
4	Remove door foil from rear door	Release door foil from inner door panel only in region of left rear door loudspeaker (H4/5) or right rear door loudspeaker (H4/6).	AR72.12-P-0105T
5	Twist left rear door loudspeaker (H4/5) or right rear door loudspeaker (H4/6) and remove
6	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
