SPS solenoid valve, location - GF46.50-P-5000-02B

Models 171.4, 203, 209, 211 with code (213a) speed-sensitive power steering

Models 215, 220, 230

Rotary valve and control bush housing for models 215 and 220 illustrated

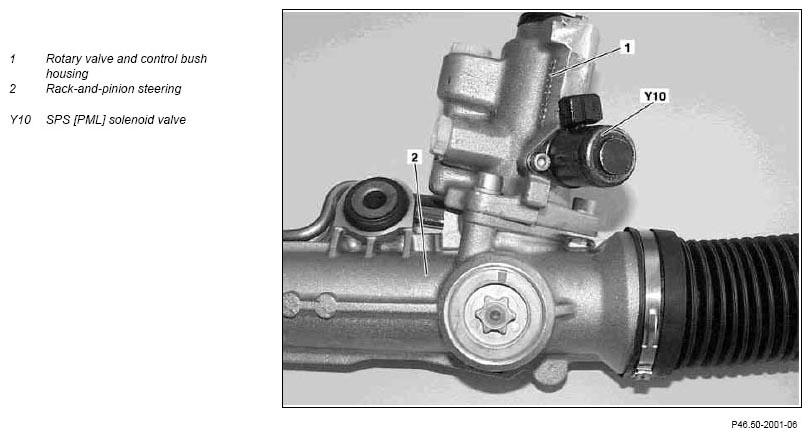

Fig 1: Locating SPS Solenoid Valve
G07288129Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

The SPS solenoid valve (Y10) is bolted onto the rotary valve and control bush housing (1) of the rack-and-pinion steering (2).
