Remove/install front seat headrest motor - AR91.29-P-1432T

MODEL 211.0/2/6 up to 30.6.04 with CODE (275) Memory package (driver seat, steering column, mirrors) with CODE (242) Electrically adjustable front passenger seat with memory

Shown with code 433 left dynamic seat, incl. multicontour seat

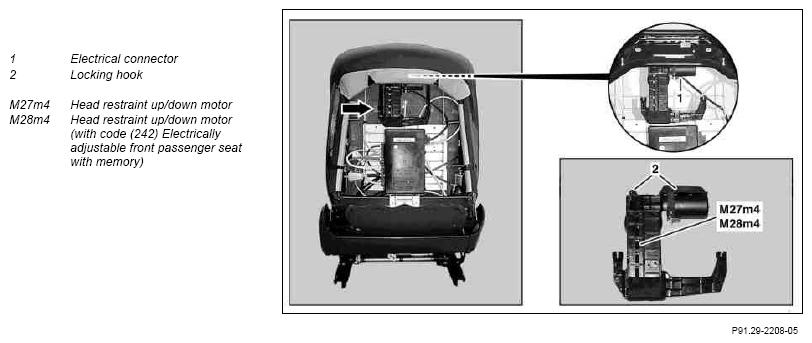

Fig 1: Identifying Front Seat Headrest Motor Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

MODIFICATION NOTES

28.1.04

Disconnect/connect ground line on battery

	Remove/install
1	Remove head restraint on left or right front seat
2	Remove seat-back lining from front seat backrest	Driver seat or front passenger seat without code (842) Folding front passenger backrest (usable as table)	AR91.10-P-1910T
2	Remove seat-back lining from front seat backrest	Front passenger seat with code (842) Folding front passenger backrest (usable as table)	AR91.10-P-1910TA
3	Release catch hooks (2) of head restraint up/down motor (M27m4 or M28m4) by sliding to the side (arrow)
4	Remove head restraint up/down motor (M27m4 or M28m4) and detach electrical connector (1)
5	Install in the reverse order
