Remove/install front seat head restraint motor - AR91.29-P-1432TA

MODEL 211.0/2/6 as of 1.7.04 with CODE (275) Memory package (driver seat, steering column, mirrors) with CODE (242) Electrically adjustable front passenger seat with memory

Shown on vehicle up to 14.8.07

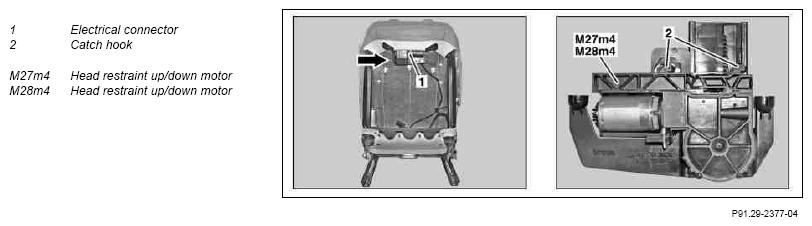

Fig 1: Identifying Front Seat Head Restraint Motor Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Remove head restraint on left or right front seat	Vehicles up to 14.8.07	AR91.16-P-0040T
1	Remove head restraint on left or right front seat	Vehicles as of 15.8.07	AR91.16-P-0040CW
2	Release catch hooks (2) of head restraint up/down motor (M27m4 or M28m4) by sliding to the side (arrow)
3	Remove head restraint up/down motor (M27m4 or M28m4) and detach electrical connector (1)
4	Install in the reverse order
