Lift/jack up vehicle - AR00.60-P-1000T

MODEL 211

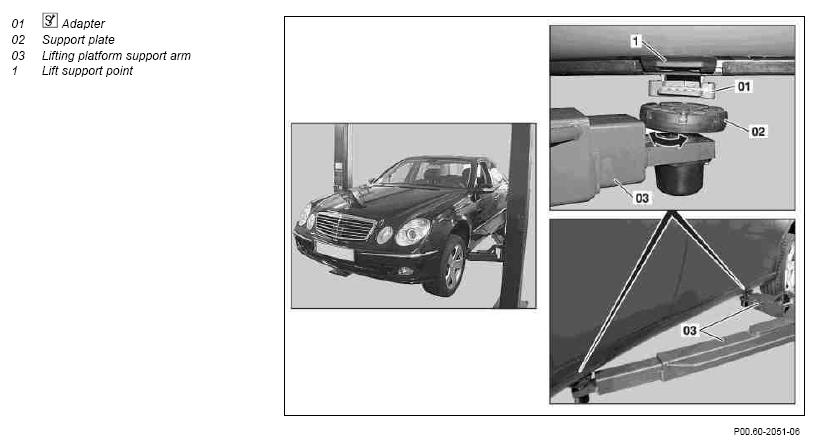

Fig 1: Lifting/Jacking Up Vehicle

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Lift/lower vehicle
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
1	Clip adapter (01) into lift support points (1) at side skirts	For removing the underfloor paneling.
		Adapter kit	Fig 2
2	Adjust support plates (02) of lifting platform support arms (03) to height of vehicle	Rotate support plates (02) until they are press against the adapters (01) or the lift support points (1) of the side skirts.
3	Raise vehicle with vehicle lift	e. g.: Two-post lift gotis://H_00.1_01.1
4	Secure the vehicle against tilting and toppling.	Before removing major assemblies (e. g. engine, transmission, axles).	AR00.60-P-0100T
5	Lower vehicle in reverse order
	Jack up/lower vehicle
6	Lift vehicle with inspection pit lift or floor jack	e. g.: Pit lift gotis://H_00.9_02.0  e. g.: Trolley jack gotis://H_00.12_01.0
7	Secure the vehicle against tilting and toppling.	Place jack stands beneath lift support points (1). e. g.: Support stand gotis://H_00.12_13.0
8	Lower vehicle in reverse order

Fig 2: Identifying Adapter Kit (203 589 02 31 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
