Gap dimensions on hoods, doors and lids - AR60.00-P-0700-01T
TEST VALUES FOR GAP DIMENSIONS ON HOODS, DOORS AND LIDS
| Number | Designation | Model 211.0 | |||
|---|---|---|---|---|---|
| BE60.00-P-1001-01F | Gap dimension | Engine hood to fender | Dim. "A" | mm | 3.5 (±0.5) |
| Engine hood to headlamp | Dim. "B" | mm | 4 (+1) | ||
| Radiator grille/bumper | Dim. "C" | mm | 5.5 (+1) | ||
| See picture | AR60.00-P-0700-01T | ||||
| BE60.00-P-1002-01F | Gap dimension | Front door to A-pillar | Dim. "D" | mm | 4.5 (±0.5) |
| Front door to fender | Dim. "E" | mm | 4 (±0.5) | ||
| Front door to rear door | Dim. "F" | mm | 4 (+1) | ||
| Front door to roof | Dim. "G" | mm | 4.5 (±0.5) | ||
| Rear door to top of side section | Dim. "H" | mm | 4.5 (±0.5) | ||
| Rear door to side section, bottom | Dim. "I" | mm | 3.5 (±0.5) | ||
| See picture | AR60.00-P-0700-01T | ||||
| BE60.00-P-1003-01F | Gap dimension | Trunk lid to rear fender, top | Dim. "J" | mm | 3,5 (+1) |
| Trunk lid to rear lamp unit | Dim. "K" | mm | 3.9 (+1) | ||
| Trunk lid to bumper | Dim. "L" | mm | 6.5 (-0.5/+1) | ||
| Rear fender to rear lamp unit | Dim. "M" | mm | 2.5 (±0.5) | ||
| Trunk lid license plate panel to rear lamp unit | Dim. "N" | mm | 4.3 (+1) | ||
| See picture | AR60.00-P-0700-01T | ||||
| BE60.00-P-1004-01F | Gap dimension | Fuel filler flap | Dim. "O" | mm | 3.5 (±0.5) |
| See picture | AR60.00-P-0700-01T | ||||

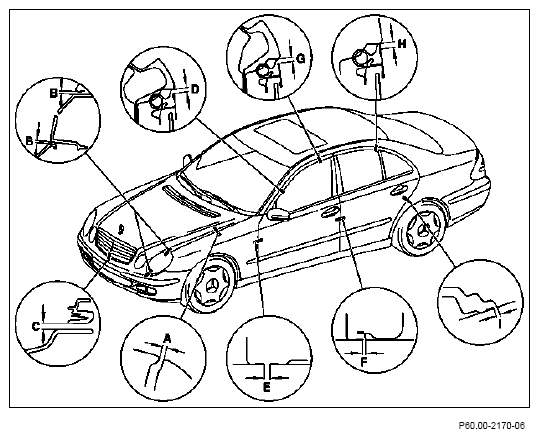

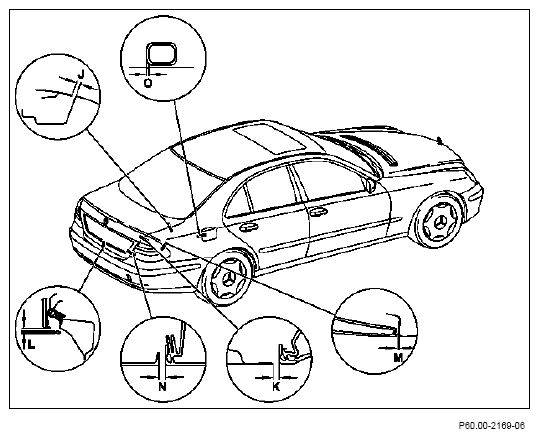

Adjust hoods, doors and lids as shown in drawing. The gap should not run wedge-shaped or be too narrow at points.
Deviations from parallel gap should be max. 0.5 mm over the entire length. If the inside clearance is too large or too small, the movable body parts must be centered accordingly. The reference measurements apply only for repair work on bodies damaged in accidents.
