Remove/install mechanical stop lamp switch - AR42.10-P-0040I

MODEL 211, 230

Model 211, 230

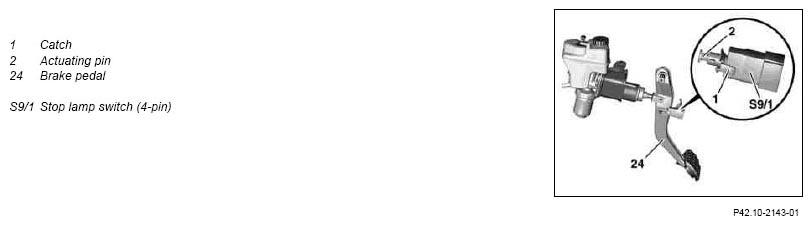

Fig 1: Identifying Mechanical Stop Lamp Switch Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Remove left cover below instrument panel	Model 211	AR68.10-P-1500T
2	Unplug electric connector at stop lamp switch (S9/1)
3	Press catch (1)
4	Turn and withdraw stop lamp switch (S9/1).	Installation:  Pull out actuating pin (2) completely. Depress brake pedal (24), insert stop lamp switch (S9/1) and rotate until the catch (1) is latched. The actuating path is adjusted automatically.
5	Install in the reverse order
