Traction systems hydraulic unit, design - GF42.50-P-4000-03S

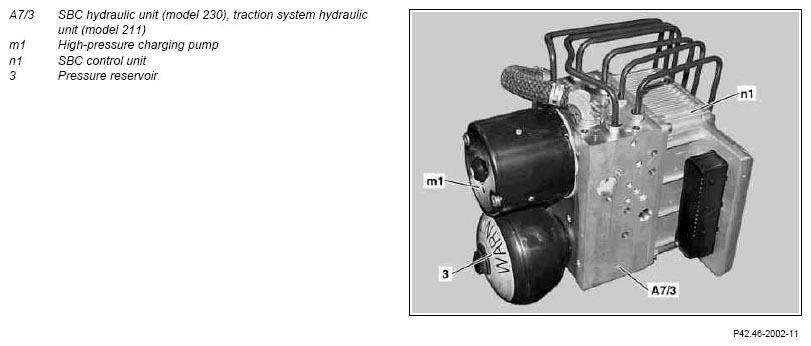

Fig 1: Identifying Traction Systems Hydraulic Unit Components
G07249502Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

The pressure reservoir, high-pressure charging pump and the SBC control unit are attached.

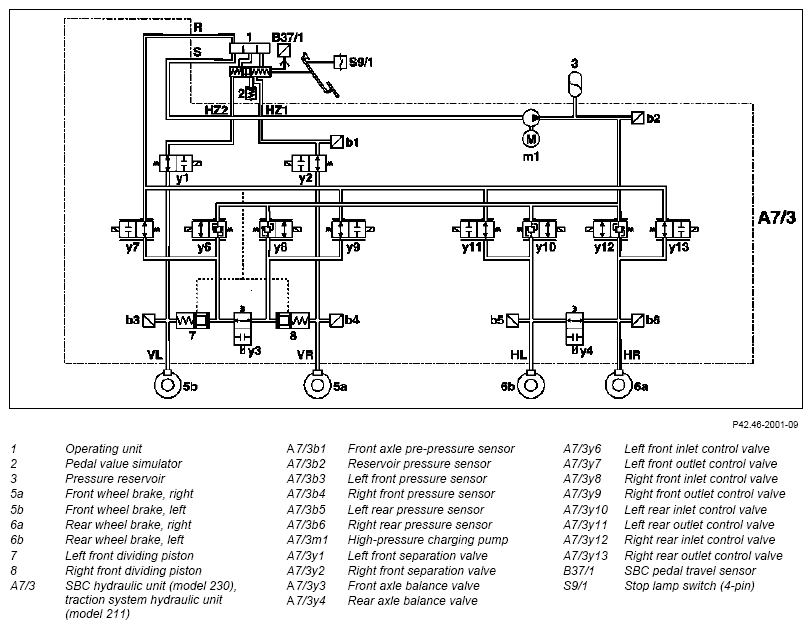

Fig 2: Traction Systems Hydraulic Unit Function Diagram
G07249503Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
