Rotational speed and lateral acceleration sensor, location - GF42.45-P-4801-01E

Model 211

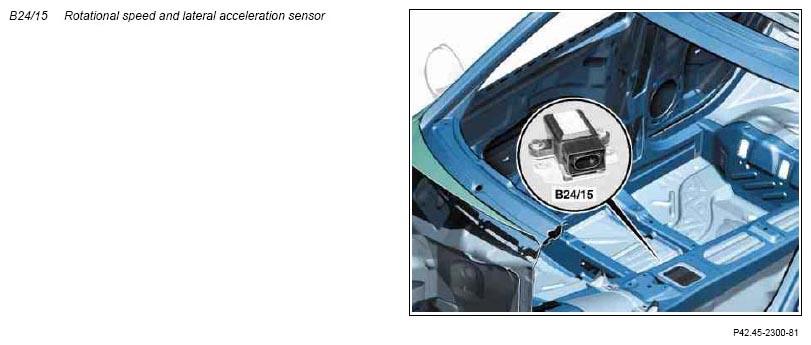

Fig 1: Locating Rotational Speed And Lateral Acceleration Sensor

G07249473

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
