Adaptive brake (ABR), block diagram - GF42.47-P-0001-03TM

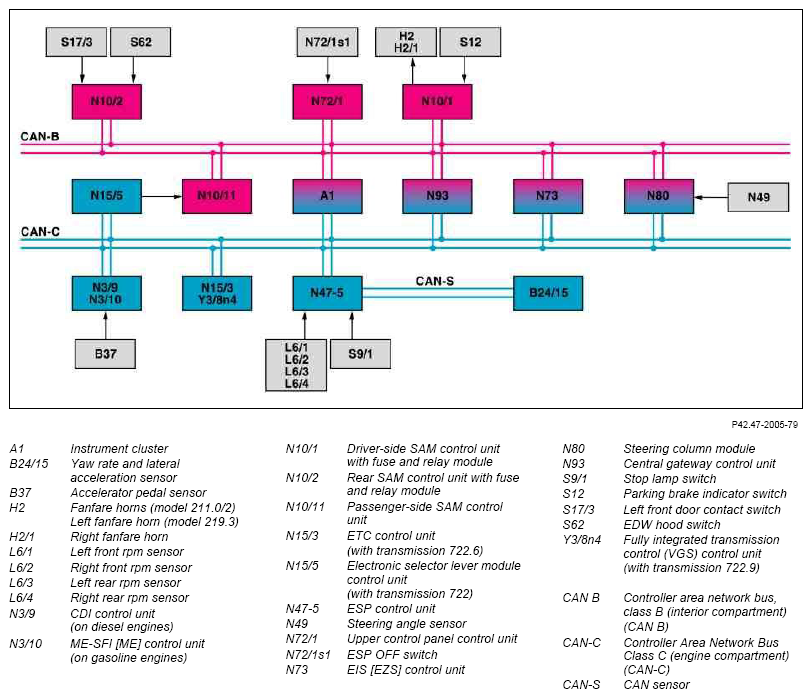

Fig 1: Adaptive Brake Block Diagram

G07249500

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
