Adaptive Brake (ABR) location of components - GF42.47-P-0001-02TM

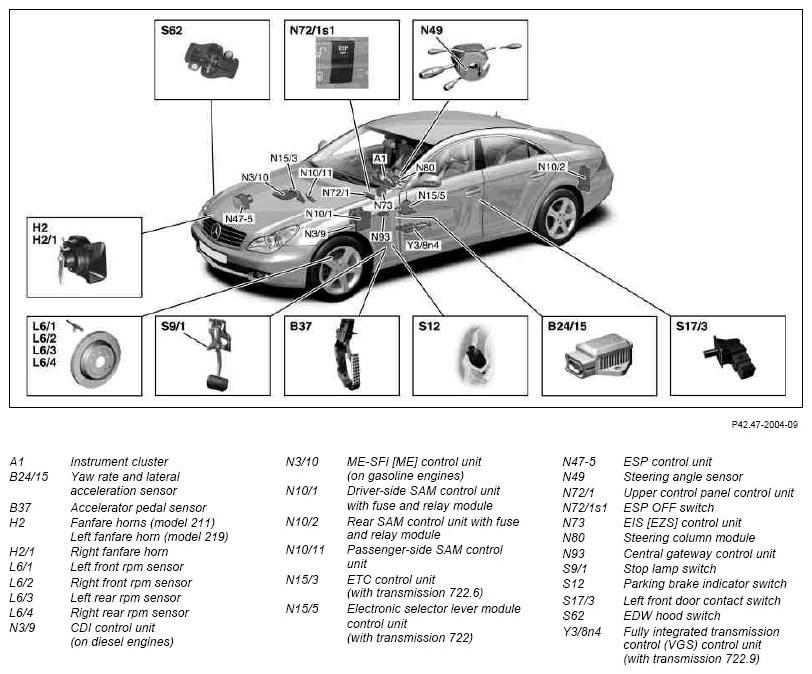

Fig 1: Locating Adaptive Brake Components

G07249499

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 219
