Retrofitting D-network cell phone - AZ82.70-P-0001T
MODEL 211 up to 31.12.03 with CODE (273) Provision for D-network handy telephone with CODE (354) CTEL antenna (GSM 900 and 1800 MHz) except CODE (810) sound system

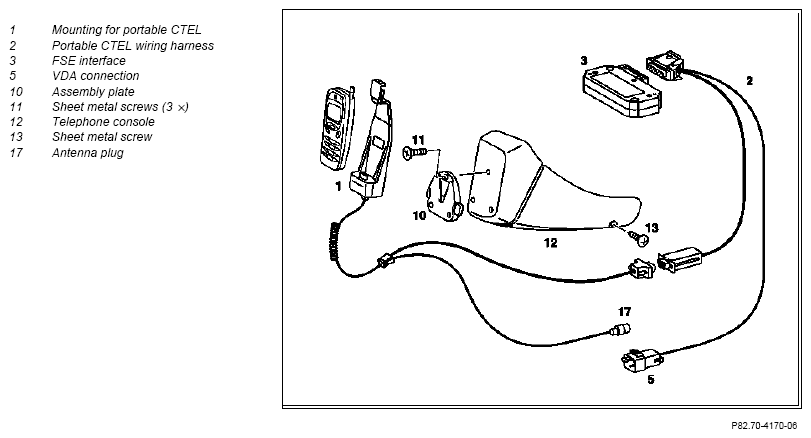

System illustration for installation
| Remove | |||
| Risk of explosion caused by oxyhydrogen gas. Risk of poisoning and caustic burns caused by swallowing battery acid. Risk of injury caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and safety glasses. Pour battery acid only into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| 1 | Disconnect battery ground lead and slacken battery | ||
| for models 211.004/006/016/061/065/070. | AR54.10-P-0003T | ||
| Notes on battery | All models | AH54.10-P-0001-01A | |
| 2 | Remove radio or COMAND | ||
| 3 | Remove ashtray | ||
| 4 | Remove right knee bolster | ||
| 5 | Remove paneling on right A-pillar | ||
| for models 211.004/006/016/061/065/070. | AR68.30-P-4050T | ||
| 6 | Detach antenna lead and VDA connector | ||
| Install | |||
| 7 | Retrofit telephone cable harness | AZ82.70-P-0001-04T | |
| 8 | Retrofit telephone console | Install console as per enclosed installation instructions. | AZ82.70-P-0001-01T |
| 9 | Retrofit hands-free system microphone | AZ82.70-P-0001-02T | |
| 10 | Check portable CTEL for proper function | ||
| 11 | Complete vehicle (following steps 6 to 1) |
PARTS ORDERING NOTES
| Part no. | Designation | Quantity |
|---|---|---|
| B6 787 57 02 | Electrical parts kit (for D-network only) | 1 |
| Accessories | CTEL console (order in accordance with equipment) | As required |
| B6 787 58 15 | Nokia 5110/6110 telephone holder | 1 |
| B6 787 58 13 | Nokia 6210 telephone holder | 1 |
| B6 787 58 14 | Siemens S/C/M35 telephone holder | 1 |
| B6 787 58 12 | Siemens SL45 telephone holder | 1 |
