Retrofit rear entertainment screen bracket - AZ82.60-P-0015-04T

The following work procedure is shown on the left side of the vehicle. Installation on the right side of the vehicle is performed correspondingly.

1. Cut out cutting template (11) along broken line.

   The cutting template (11) is included in the installation kit.

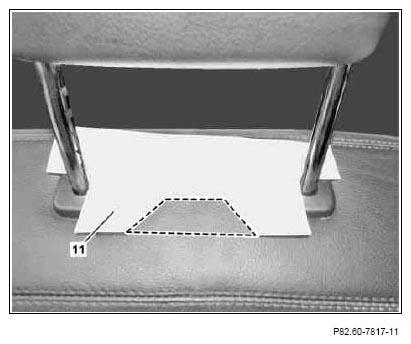

   Fig 1: Identifying Cutting Template

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
2. Apply cutting template (11) to head restraint and mark separating point (broken line).
3. Remove cutting template (11).
   Fig 2: Applying Cutting Template To Head Restraint

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
4. Cut seat cover using a knife and fix shackle (12) in place using adhesive tape (13).

   Be very careful while cutting, otherwise the seat cover may be damaged.

5. Work out opening in seat cover and remove remaining foam.

   Be very careful while cutting, otherwise the seat cover may be damaged.

   Fig 3: Fixing Shackle In Place

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
6. Work out seat core until cross strut (14) of seat is accessible.

   Be very careful while cutting, otherwise the seat cover may be damaged.

7. Fold shackle (12) into opening.

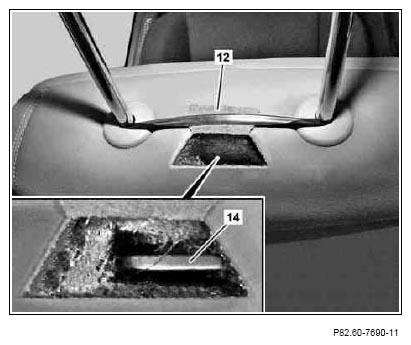

   Fig 4: Identifying Cross Strut And Shackle

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
8. Insert silver bracket (15) into opening.
9. Insert black bracket (16) into opening.
10. Screw bracket (16) to bracket (15) using screw/bolt (17).

    Bracket (16) and bracket (15) are interlocked with the cross strut exposed in operation step  6 of the seat by means of the threaded connection. Observe tightening torque.

    Fig 5: Identifying Silver Bracket, Black Bracket & Screw/Bolt

    Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
11. Tighten bracket with screw/bolt (18) at crossmember of seat.

    Use suitable washer and nut from delivery contents.

    Expose seat cover.

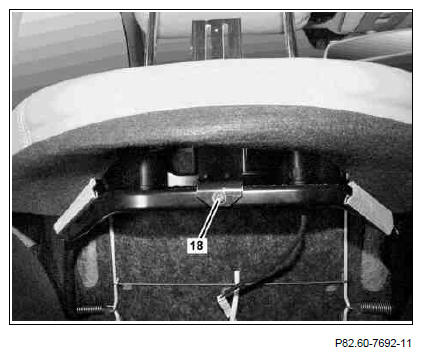

    Fig 6: Identifying Bracket Screw/Bolt At Crossmember Of Seat

    Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
