Retrofit iPod wiring harness - AZ82.60-P-0001-02T

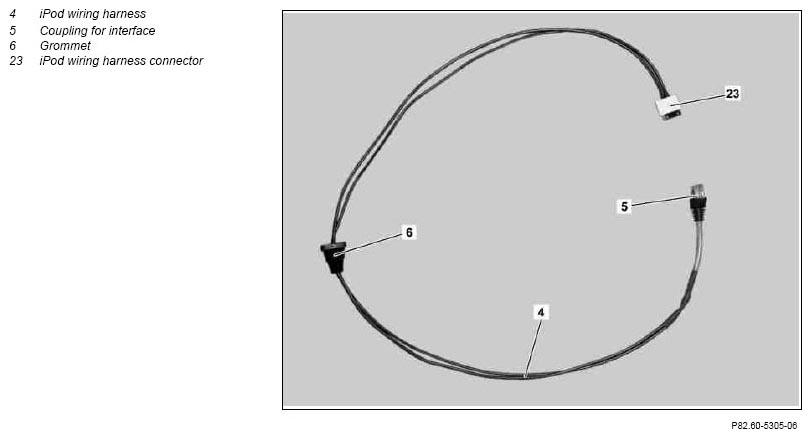

Fig 1: Identifying iPod Wiring Harness Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

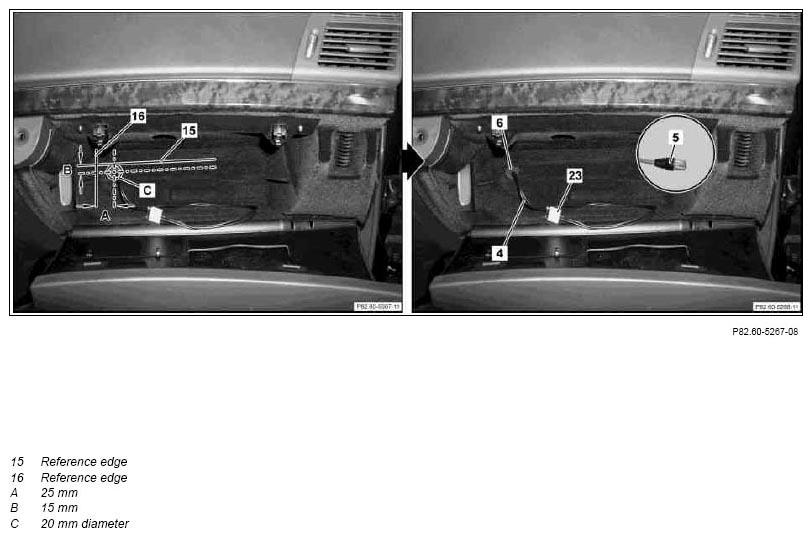

Fig 2: Identifying Drilling Hole Dimensions In Glove Compartment

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Drill hole with Ø (C) in glove compartment according to dimensions.
Ensure that no other components are damaged when drilling the hole with Ø (C).
Route interface coupling (5) of iPod wiring harness (4) into the front passenger footwell through hole with Ø (C) and close hole with grommet (6).
Interface coupling (5) of iPod wiring harness (4) will be connected to the iPod interface at a later point in time. iPod wiring harness connector (23) will be connected to the iPod at a later point in time.
