Retrofit iPod interface wiring harness - AZ82.60-P-0001-01T

iPod interface wiring harness

Fig 1: Identifying iPod Interface Wiring Harness

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

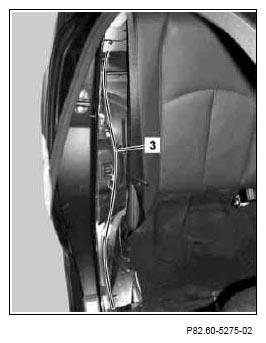

The iPod interface wiring harness (3) is routed starting at the left of the luggage compartment into the right front footwell. The iPod interface wiring harness (3) is to be routed under the floor covering only. It must be routed and fastened such that any damage and vibration noise is prevented.

1. Unpin the brown/red line from the blue connector (28) of the iPod interface wiring harness (3).

   Blue plug (28) is still required.

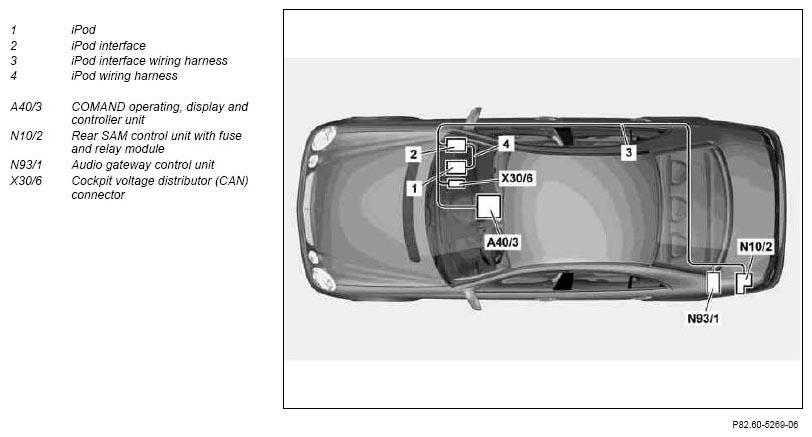

   Routing diagram for iPod wiring harness

   Fig 2: Routing Diagram Of iPod Wiring Harness

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

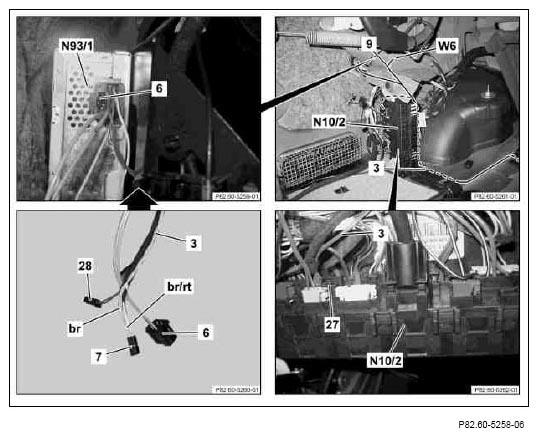

2. Detach connector housing (6) from audio gateway control unit (N93/1).
3. Detach plug (7) from connector housing (6).
4. Unpin brown (br) line from plug (7) of vehicle's wiring harness and insert brown (br) line of iPod interface wiring harness (3) into same contact cavity of plug (7).
5. Unpin brown/red line from plug (7) of vehicle's wiring harness and insert brown/red line (br/rt) of iPod interface wiring harness (3) into same contact cavity of plug (7).
   Fig 3: Identifying Wiring Harness Connections

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
6. Join plug (7) and connector housing (6).
7. Insert brown (br) and brown/red (br/rt) line of vehicle's wiring harness into any contact cavity of the blue plug (28) and strap down to given wiring harness.

   Insert brown (br) and brown/red (br/rt) line of vehicle's wiring harness into blue plug, to avoid any short circuiting.

8. Join connector housing (6) to audio gateway control unit (N93/1).

   Don not connect the blue connector housing supplied but strap it down onto wiring harness.

9. Insert plug (27) of iPod interface wiring harness (3) into contact cavity 27 of the rear SAM control unit with fuse and relay module (N10/2).

   Plug position 27 is mechanically coded for the plug (27) of the iPod interface wiring harness (3).

10. Connect ground connection (9) of iPod interface wiring harness (3) to ground (left wheelhouse in luggage compartment) (W6).
11. Connect relay (24) contained in parts kit to socket C of the rear SAM control unit with fuse and relay module (N10/2).
12. Insert the 7.5 A fuse (25) included in the parts kit into plug position 5 of the rear SAM control unit with fuse and relay module (N10/2).
    Fig 4: Identifying Relay, Fuse And Rear SAM Control Unit With Fuse And Relay Module

    Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
13. Route the iPod interface wiring harness (3) as shown from the luggage compartment into the interior and fasten in place using felt strap.
    Fig 5: Routing FSE 12 Wiring Harness In Luggage Compartment

    Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
14. Route iPod interface wiring harness (3) into the interior onto the right wheel arch as shown.
15. Route iPod interface wiring harness (3) under the floor covering and forwards into the right footwell.
    Fig 6: Routing FSE 12 Wiring Harness Into Right Luggage Compartment

    Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
16. Route iPod interface wiring harness (3) as shown into the footwell and attach to given wiring harness.
17. Detach cockpit voltage distributor (CAN) connector (X30/6).
18. Join CAN plug (21) of iPod interface wiring harness (3) to free plug position of cockpit voltage distributor (CAN) connector (X30/6).

    Connect CAN plug (21) to any free plug position.

19. Connect cockpit voltage distributor (CAN) connector (X30/6).
20. Route branch-off line of iPod interface wiring harness (3) as shown into the radio recess (see arrow).

    The plug for the iPod interface wiring harness (19) will be connected at a later stage to the iPod (2) interface.

    Fig 7: Identifying Cockpit Voltage Distributor (CAN) Connector And iPod Interface Wiring Harness

    Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
21. Disconnect connector of on-board AUX cable to COMAND operating, display and controller unit (A40/3) and strap down wiring harness.

    The vehicle's AUX cable can no longer be used in combination with the iPod (1).

22. Connect plug (20) of branch-off line to the COMAND operating, display and controller unit (A40/3).
    Fig 8: Identifying Plug Of Branch-Off Line

    Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
