Retrofit iPod interface - AZ82.60-P-0001-03TXR
- Remove part of sound deadening mat on trim (14) as shown.

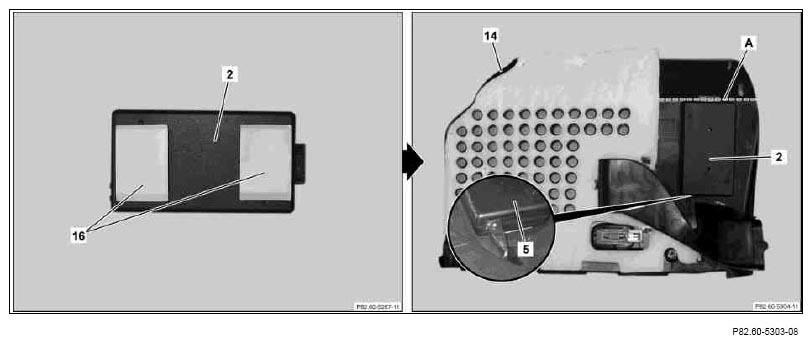

- Glue velcro strip (16) as shown onto iPod interface (2).
- Glue iPod interface (2) as shown onto trim (14).
- Connect interface coupling (5) for iPod wiring harness, route line as shown and fasten to trim using felt.

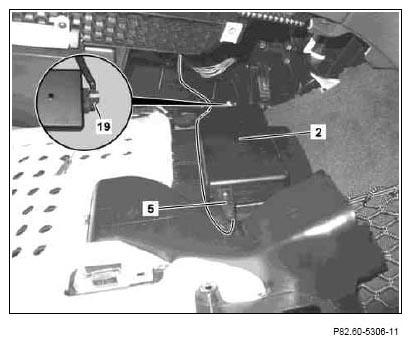

- Connect iPod interface wiring harness plug (19) for iPod wiring harness (see magnifying glass) to iPod interface (2).
Glue iPod interface (2) such that the interface coupling (5) of the iPod wiring harness fits into the cutout between the air deflector ducts (see magnifying glass). Bonding surfaces must be clean, dry and free of grease.
