Retrofit iPod interface - AZ82.60-P-0001-03TAA

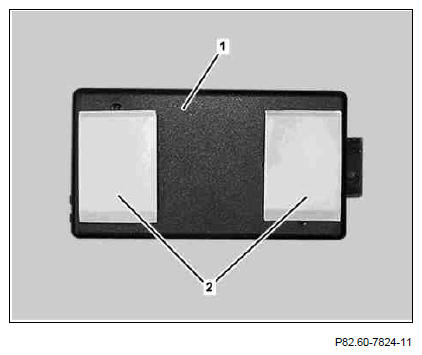

Centrally align two of the Velcro strips (2) included in package contents and press together firmly.
Remove protective foils and glue Velcro strips (2), as illustrated, onto the iPod interface (1).

Fig 1: Identifying Velcro Strips On iPod Interface
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

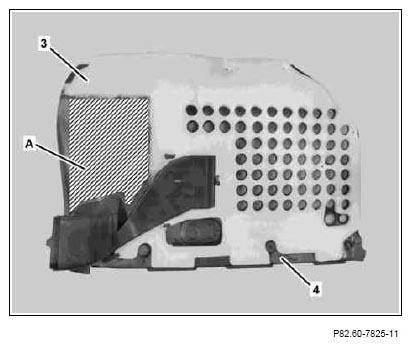

Remove hatched area (A) of insulation mat (3) on cover below instrument panel on right (4).
Clean exposed bonding surfaces on cover below instrument panel on right (4).
The bonding surfaces must be dry, free of dust and grease.

Fig 2: Identifying Hatched Area Of Insulation Mat
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

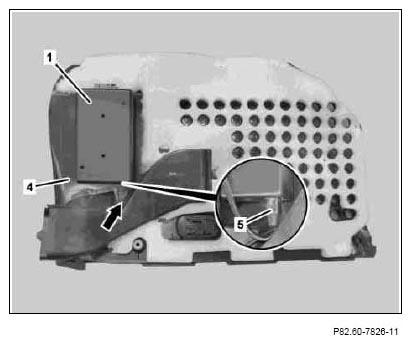

Remove protective foils from Velcro strips on iPod interface (1) and glue iPod interface (1), as illustrated, onto cover below instrument panel on right (4).
Glue on iPod interface (1) such that black iPod wiring harness coupling (5), which will be connected later on, fits into cutout (arrow) of air duct.

Fig 3: Identifying iPod Interface And iPod Wiring Harness Coupling
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
