Retrofit D-net portable CTEL - AZ82.70-P-0001TTB

MODEL 211.0 with CODE (273) Provision for D-network portable CTEL telephone except CODE (810) Sound system for Mercedes-Benz hands-free system FSE11 with CAN interface

Shown on radio version

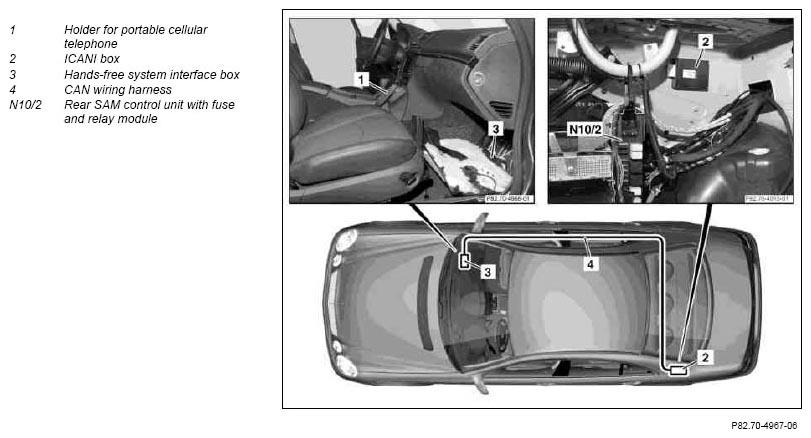

Fig 1: D-net Portable CTEL CAN Wiring Harness Routing Diagram

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove
1	Connect no load current retention unit		*WH58.30-Z-1012-09A
	Risk of explosion caused by oxyhydrogen gas. Risk of poisoning and caustic burns caused by swallowing battery acid. Risk of injury caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Pour battery acid only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
2	Disconnect ground cable of battery
		Models 211.004/006/016/023/026/028/042/043/061/065/070/076/080/082/083.	AR54.10-P-0003T
	Notes on battery	All models	AH54.10-P-0001-01A
3	Remove front passenger knee bolster
4	Remove side paneling in trunk
		Models 211.004/006/016/026/028/042/043/061/065/070/076/080/082/083 except CODE (287a) Through-loading feature.	AR68.30-P-4800T
		Models 211.004/006/016/026/028/042/043/061/065/070/076/080/082/083 with CODE (287a) Through-loading feature.	AR68.30-P-4800TA
5	Remove control unit plate cover in the load compartment
6	Remove rear seat backrest
		Models 211.004/006/016/026/028/042/043/061/065/070/076/080/082/083 except CODE (287a) Through-loading feature.	AR91.12-P-1620T
		Models 211.004/006/016/026/028/042/043/061/065/070/076/080/082/083 with CODE (287a) Through-loading feature.	AR91.12-P-1620TA
7	Open right-hand frame floor system
8	Remove overhead control panel control unit	Do not unplug electrical connections
		MODEL 211.004/006/016/026/028/042/043/061/065/070/076/080/082/083/206/216/226/242/243/261/265/270/276/280/282/283.	AR82.20-P-1000T
9	Remove paneling on A-pillar.	Bottom right.
		Models 211.004/006/016/026/028/042/043/061/065/070/076/080/082/083.	AR68.30-P-4050T
		Models 211.004/006/016/026/028/042/043/061/065/070/076/080/082/083.	AR68.30-P-4050TA
10.1	Remove cover on the radiator tank in the engine compartment	Only when retrofitting the telephone antenna.
	Install
11.1	Retrofit antenna	Telephone antenna. For vehicles without antenna for telephone (D- and E-network) Code 354.	AN82.62-P-0001-02TTA
12	Retrofit telephone bracket with PSC adapter	Refer to installation instructions for accessories.
13	Retrofit hands-free system wiring harness		AZ82.70-P-0005-02TTB
14	Retrofit control unit and interface		AZ82.70-P-0008-01TTB
15	Retrofit microphone for hands-free system		AZ82.70-P-0001-02TT
16	Enable using Star diagnosis	Control units Information and communication ICM Control unit adaptations Variant coding Special equipment Enable telephone.
17	Carry out startup and function test	Check telephone for proper functioning according to operating instructions.	AZ82.61-P-0001-04B
18	Install remaining parts onto vehicle	Steps 10 to 1.

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1012-09A	Quiescent current retention unit

PARTS ORDERING NOTES

Part no.	Designation	Quantity
B6 787 57 08	Parts kit FSE 11	1
B6 788 51 01	Parts kit ICANI box	1
B6 788 51 50	Accessory connection kit	1
004 545 29 05	Relay	1
commercially available	Fuse 7.5A	as required
B6 787 58 22	Portable CTEL cradle for Nokia 6210, 6310, 6310i	1
B6 787 58 23	Portable CTEL cradle for Siemens S45, S45i, C45, M50, MT50, ME45	1
B6 787 58 24	Portable CTEL cradle for Motorola V60i (GSM)	1
B6 787 58 25	Portable CTEL cradle for Siemens S55, C55	1
Accessories	Telephone bracket with PSC adapter (order as per customer's request, vehicle model and equipment)	as required
A030 545 28 28	Plug housing (for microphone)	1
A008 545 55 26	Female contact (for microphone)	2
