Retrofit Bluetooth interface - AZ82.70-P-0012-01T

If a CP Bluetooth interface kit is installed, a portable CTEL cradle cannot be used.

Remove covers (1).
Unscrew bolts beneath covers (1)
Remove stowage tray (2) from center console (3).

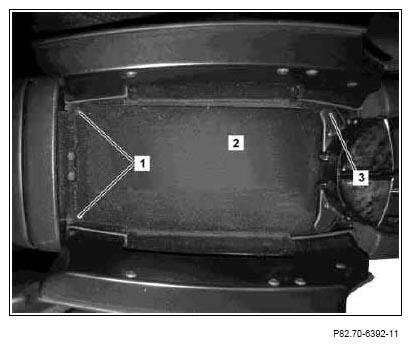

Fig 1: Identifying Center Console, Stowage Tray And Covers
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Drill hole (a) with a diameter of 15 mm in the left rear stowage tray (2).
Deburr the hole (a).
Route CP Bluetooth interface (8) wiring harness through hole (a) in stowage tray (2).
The CP Bluetooth interface wiring harness (8) must be routed and secured in such a way to prevent vibration noise and damage.

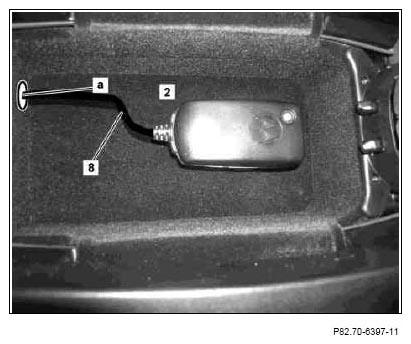

Fig 2: Locating Drilling Hole On Left Rear Stowage Tray
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Route CP Bluetooth interface wiring harness (8) as per picture and connect coupling of CP Bluetooth interface wiring harness (8) to connector (9).
The CP Bluetooth interface wiring harness (8) must be routed and secured in such a way to prevent vibration noise and damage.

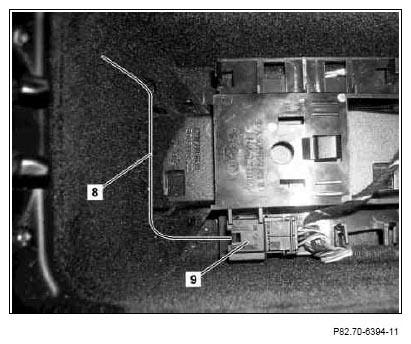

Fig 3: Identifying CP Bluetooth Interface Wiring Harness And Connector
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Insert stowage tray (2) into center console (3), tighten screws and fit covers (1) to screws.
Fit bracket (4) to stowage tray (2) and secure to stowage tray (2) with screws (5) as per picture.
Position bracket (4) so that CP Bluetooth interface that is installed later will be an adequate distance from the surrounding walls of the stowage tray (2).

The bracket (4) and the screws (5) are included in the scope of delivery.

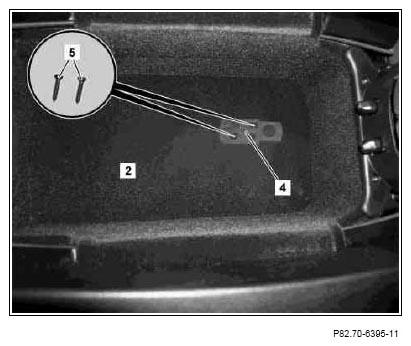

Fig 4: Identifying Stowage Tray Bracket & Screws
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Stick adhesive pad (7) to bracket (4) as per picture.
The bonding surface must be free of dust and grease.

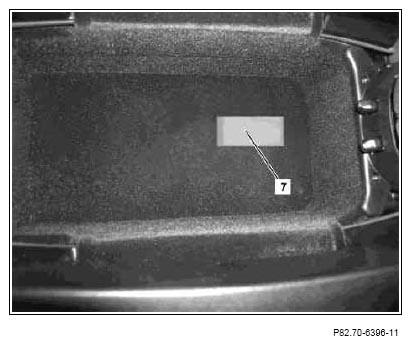

Fig 5: View Of Adhesive Pad On Bracket
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Bond CP Bluetooth interface to adhesive pad (7).
The bonding surface must be free of dust and grease.

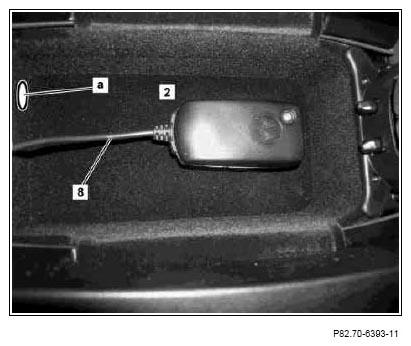

Fig 6: View Of CP Bluetooth Interface On Adhesive Pad
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
