Check vehicle level at front and rear axle with electronic inclinometer, adjust if necessary - AR40.20-P-0301T

MODEL 211.0/ 2/ 6, 219.3

Fig 1: Identifying Inclination Meter And Measuring Sensor
G04983777

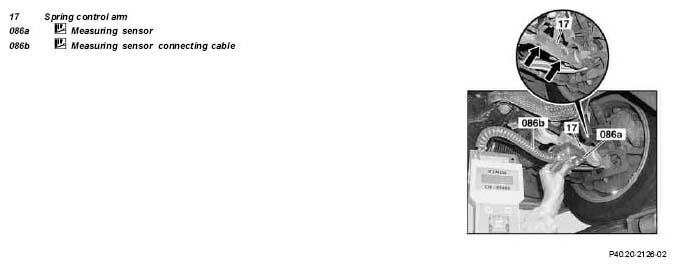

Illustration Shows Measuring Point 1 (Left Front)

Fig 2: Identifying Spring Control Arm, Measuring Sensor And Measuring Sensor Connecting Cable - Measuring Point 1 (Left Front)
G04983778

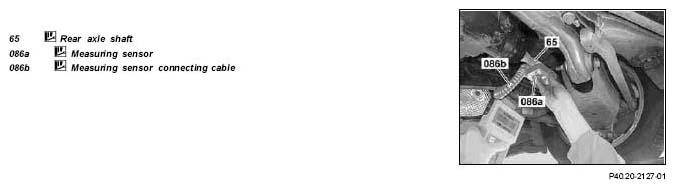

Illustration shows measuring point 3 (left rear)

Fig 3: Identifying Rear Axle Shaft, Measuring Sensor And Measuring Sensor Connecting Cable - Measuring Point 3 (Left Rear)
G04983779
MODIFICATION NOTES

26.10.05 Permissible difference in vehicle level between right and left sides of the vehicle Models 211, 219 *BE40.20-P-1002-03I
27.10.05 Permissible difference in vehicle level between right and left sides of the vehicle Models 211, 219 *BE40.20-P-1002-02I
INSPECT Checking
1 Carry out preconditions and tests for vehicle level measurement   AR40.00-P-0202A
2 Clean measuring points IMPORTANT This prevents any measuring errors.
3 Mount measuring sensor (086a) on spring link (17) between the cast-in humps and read off the vehicle level on the inclinometer (86) NOTES The measuring sensor connecting cable (086b) must point towards the center of the vehicle, otherwise the measurement will be incorrect.
IMPORTANT Measure vehicle level at
  • Measuring point 1 (left front) and
  • measuring point 2 (right front) and store measured values.

    Vehicle level - front axle *BE40.20-P-1001-02I
    COMMERCIALLY AVAILABLE TOOLS Electronic inclinometer (CM 9606) *WE58.40-Z-1002-15A
4 Mount measuring sensor (086a) on rear axle shaft (65) and read off vehicle level on the inclinometer (86) NOTES The measuring sensor connecting cable (086b) must point towards the center of the vehicle, otherwise the measurement will be incorrect.
IMPORTANT Measure vehicle level at
  • Measuring point 3 (left rear) and
  • measuring point 4 (right rear) and store measured values.

    Vehicle level - rear axle *BE40.20-P-1001-03I
    COMMERCIALLY AVAILABLE TOOLS Electronic inclinometer (CM 9606) *WE58.40-Z-1002-15A
5 Check the maximum permissible difference in vehicle level between the left and right side of the vehicle IMPORTANT The specified test tolerance applies only when checking the vehicle level but not for calibration.
    Permissible difference in vehicle level at front axle between right and left sides of the vehicle *BE40.20-P-1002-02I
    Permissible difference in vehicle level at rear axle between right and left sides of the vehicle *BE40.20-P-1002-03I
6.1 Adjust the vehicle level by changing the springs or spring rubber mounts Vehicles without code (489) Active Body Control (ABC) and if the vehicle level is outside the test tolerance.
    Permissible difference in vehicle level at front axle between right and left sides of the vehicle *BE40.20-P-1002-02I
    Permissible difference in vehicle level at rear axle between right and left sides of the vehicle *BE40.20-P-1002-03I
6.2 Use STAR DIAGNOSIS to calibrate vehicle level Vehicles with code (489) Airmatic (semiactive air suspension) and if the vehicle level is outside the test tolerance.
REFER TO SELF-DIAGNOSTIC SYSTEMS Connect STAR DIAGNOSIS and read out fault memory   AD00.00-P-2000-04A
    STAR DIAGNOSIS diagnosis system *WH58.30-Z-1048-13A
    Permissible difference in vehicle level at front axle between right and left sides of the vehicle *BE40.20-P-1002-02I
    Permissible difference in vehicle level at rear axle between right and left sides of the vehicle
IMPORTANT Possible cause, if the vehicle level is not OK after calibration:
  • Attachment of level sensor is deformed.
 *BE40.20-P-1002-03I
7.1 Adjust headlamps Only if the vehicle level has been calibrated.
REFER TO MAINTENANCE Check and correct headlamp adjustment Model 211 AP82.10-P-8260T
    Model 219.3 AP82.10-P-8260TX
CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number Designation Model 211.0/2 ECE with 4MATIC, AIRmatic (code 489) and suspension with increased ground clearance (code 482) Model 211.0/2 ECE with 4MATIC, AIRmatic (code 489) except suspension with increased ground clearance (code 482)
BE40.20-P-1001-02I Vehicle level - front axle ∠° +6,5 +1.6 (±1.5)
BE40.20-P-1002-02I Permissible difference in vehicle level between right and left sides of the vehicle When checking ∠° 1 1
When calibrating with Star Diagnosis ∠° 0.5 0.5
CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number Designation Model 211.08/09/28/29 with steel suspension (standard) Model 211.0/2 USA with 4MATIC, AIRmatic (code 489) and suspension with increased ground clearance (code 482)
BE40.20-P-1001-02I Vehicle level - front axle ∠° +3.0 (±1.5) +3.0
BE40.20-P-1002-02I Permissible difference in vehicle level between right and left sides of the vehicle When checking ∠° 1 1
When calibrating with Star Diagnosis ∠° 0.5 0.5
CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number Designation Model 211.0/2 USA with 4MATIC, AIRmatic (code 489) except suspension with increased ground clearance (code 482) Model 211.00/01/02/04/05/ 06/07 with steel suspension (standard)
BE40.20-P-1001-02I Vehicle level - front axle ∠° +1.1 (±1.5) +6.5 (±1.5)
BE40.20-P-1002-02I Permissible difference in vehicle level between right and left sides of the vehicle When checking ∠° 1 1
When calibrating with Star Diagnosis ∠° 0.5 0.5
CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number Designation Model 211.0 except 4matic, except steel suspension, except suspension with increased ground clearance (code 482), with MB sports suspension (code 486) or AMG Model 211.0 except 4matic, except AMG except MB sports suspension (code 486), except Airmatic (code 489), with steel suspension and suspension with increased ground clearance (code 482)
BE40.20-P-1001-02I Vehicle level - front axle ∠° +3.9 (±1.5) +9.1 (±1.5)
BE40.20-P-1002-02I Permissible difference in vehicle level between right and left sides of the vehicle When checking ∠° 1 1
When calibrating with Star Diagnosis ∠° 0.5 0.5
CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number Designation Model 211.0/2 except 4matic, except AMG except MB sports suspension (code 486), except steel suspension, except suspension with increased ground clearance (code 482), with Airmatic (code 489) Model 211.20/21/22/24/ 25/26/27 with steel suspension (standard)
BE40.20-P-1001-02I Vehicle level - front axle ∠° +3.6 (±1.5) +6.8 (±1.5)
BE40.20-P-1002-02I Permissible difference in vehicle level between right and left sides of the vehicle When checking ∠° 1 1
When calibrating with Star Diagnosis ∠° 0.5 0.5
CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number Designation Model 211.2 except 4matic, except suspension with increased ground clearance (code 482), with MB sports suspension (code 486) or AMG Model 211.6 with steel suspension (standard)
BE40.20-P-1001-02I Vehicle level - front axle ∠° +3.9 (±1.5) +6.8 (±1.5)
BE40.20-P-1002-02I Permissible difference in vehicle level between right and left sides of the vehicle When checking ∠° 1 1
When calibrating with Star Diagnosis ∠° 0.5 0.5
CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number Designation Model 219 with steel suspension (standard) Model 219 with Airmatic (code 489)
BE40.20-P-1001-02I Vehicle level - front axle ∠° +2.3 (±1.5) +3.6 (±1.5)
BE40.20-P-1002-02I Permissible difference in vehicle level between right and left sides of the vehicle When checking ∠° 1 1
When calibrating with Star Diagnosis ∠° 0.5 0.5
CHECK VALUES FOR REAR AXLE VEHICLE LEVEL CONTROL

Number Designation Model 211.0, with 4matic and steel suspension (standard) Model 211.0/2 ECE, with 4matic and Airmatic (code 489)
BE40.20-P-1001-03I Vehicle level - rear axle ∠° +1.8 (±1.0) -0.1 (±1.0)
BE40.20-P-1002-03I Permissible difference in vehicle level between right and left sides of the vehicle When checking ∠° 1 1
When calibrating with Star Diagnosis ∠° 0.5 0.5
CHECK VALUES FOR REAR AXLE VEHICLE LEVEL CONTROL

Number Designation Model 211.0/2 ECE with 4matic, Airmatic (code 489) and suspension with increased ground clearance (code 482) Model 211.0/2 USA, with 4matic, with Airmatic (code 489), with suspension with increased ground clearance (code 482)
BE40.20-P-1001-03I Vehicle level - rear axle ∠° +3.35 +0.8
BE40.20-P-1002-03I Permissible difference in vehicle level between right and left sides of the vehicle When checking ∠° 1 1
When calibrating with Star Diagnosis ∠° 0.5 0.5
CHECK VALUES FOR REAR AXLE VEHICLE LEVEL CONTROL

Number Designation Model 211.2 ECE/USA with 4matic, with rear air suspension and front steel suspension Model 211.0/2 USA, with Airmatic (code 489), except 4matic
BE40.20-P-1001-03I Vehicle level - rear axle ∠° +0.2 (±1.0) -1.1 (±1.0)
BE40.20-P-1002-03I Permissible difference in vehicle level between right and left sides of the vehicle When checking ∠° 1 1
When calibrating with Star Diagnosis ∠° 0.5 0.5
CHECK VALUES FOR REAR AXLE VEHICLE LEVEL CONTROL

Number Designation Model 211.0 except 4matic, with steel suspension (standard) Model 211.0 except 4matic, with MB sports suspension (code 486) or AMG,
BE40.20-P-1001-03I Vehicle level - rear axle ∠° -0.8 (±1.0) -2.7 (±1.0)
BE40.20-P-1002-03I Permissible difference in vehicle level between right and left sides of the vehicle When checking ∠° 1 1
When calibrating with Star Diagnosis ∠° 0.5 0.5
CHECK VALUES FOR REAR AXLE VEHICLE LEVEL CONTROL

Number Designation Model 211.0 with steel suspension and suspension with increased ground clearance (code 482), except 4matic, except MB sports suspension (code 486), except AMG Model 211.0 ECE, except 4matic, with Airmatic (code 489)
BE40.20-P-1001-03I Vehicle level - rear axle ∠° +3.6 (±1.0) -1.0 (±1.0)
BE40.20-P-1002-03I Permissible difference in vehicle level between right and left sides of the vehicle When checking ∠° 1 1
When calibrating with Star Diagnosis ∠° 0.5 0.5
CHECK VALUES FOR REAR AXLE VEHICLE LEVEL CONTROL

Number Designation Model 211.2 with steel suspension (standard), except 4matic Model 211.2 with MB sports suspension (code 486) or AMG, except 4matic
BE40.20-P-1001-03I Vehicle level - rear axle ∠° -0.8 (±1.0) -2.1 (±1.0)
BE40.20-P-1002-03I Permissible difference in vehicle level between right and left sides of the vehicle When checking ∠° 1 1
When calibrating with Star Diagnosis ∠° 0.5 0.5
CHECK VALUES FOR REAR AXLE VEHICLE LEVEL CONTROL

Number Designation Model 211.2 ECE with Airmatic (code 489) Model 211.6 with steel suspension (standard)
BE40.20-P-1001-03I Vehicle level - rear axle ∠° -0.8 (±1.0) +1.0 (±1.0)
BE40.20-P-1002-03I Permissible difference in vehicle level between right and left sides of the vehicle When checking ∠° 1 1
When calibrating with Star Diagnosis ∠° 0.5 0.5
CHECK VALUES FOR REAR AXLE VEHICLE LEVEL CONTROL

Number Designation Model 219 with steel suspension (standard) Model 219 with Airmatic DC (code 489)
BE40.20-P-1001-03I Vehicle level - rear axle ∠° -0.6 (±1.0) -1.0 (±1.0)
BE40.20-P-1002-03I Permissible difference in vehicle level between right and left sides of the vehicle When checking ∠° 1 1
When calibrating with Star Diagnosis ∠° 0.5 0.5
COMMERCIALLY AVAILABLE TOOLS

Number Designation
WH58.30-Z-1048-13A STAR DIAGNOSIS diagnosis system, Compact Passenger Car 6511 1801 00
WORKSHOP EQUIPMENT

WE58.40-Z-1002-15A Electronic clinometer
