Electronic rear axle level control, networking of components - GF32.33-P-0004-05A

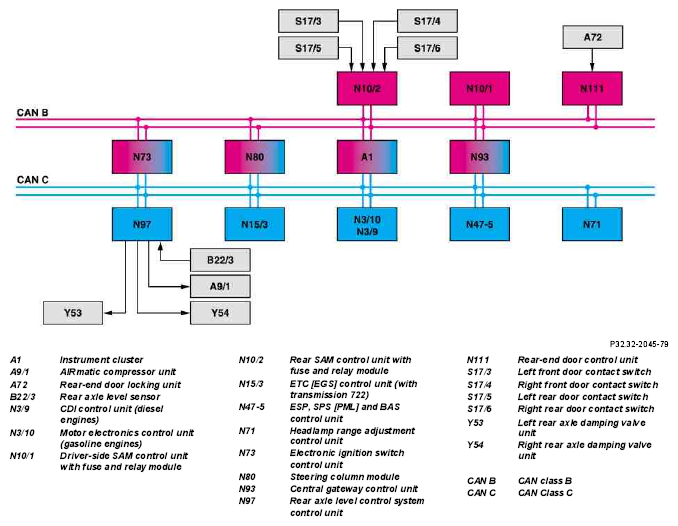

Fig 1: Identifying Electronic Rear Axle Level Control, Networking Of Component

G04984591
