Damper valve, location - GF32.31-P-4300-03E

Model 211

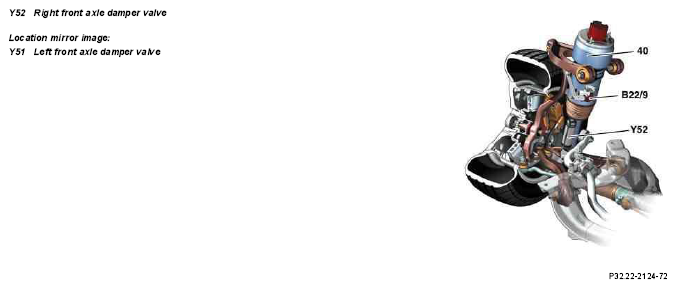

Fig 1: Identifying Front Axle Damper Valve

G04984580

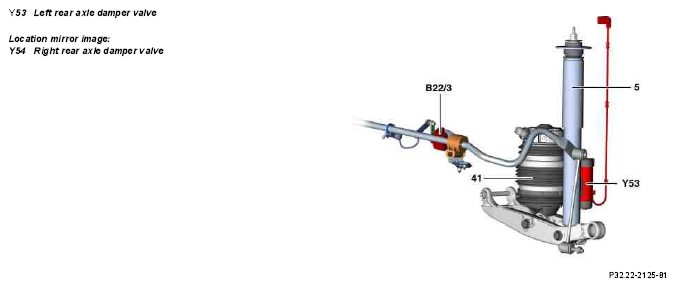

Fig 2: Identifying Rear Axle Damper Valve

G04984581
