AIRmatic - location of the electrical / electronic components - GF32.22-P-0003-03E

Model 211

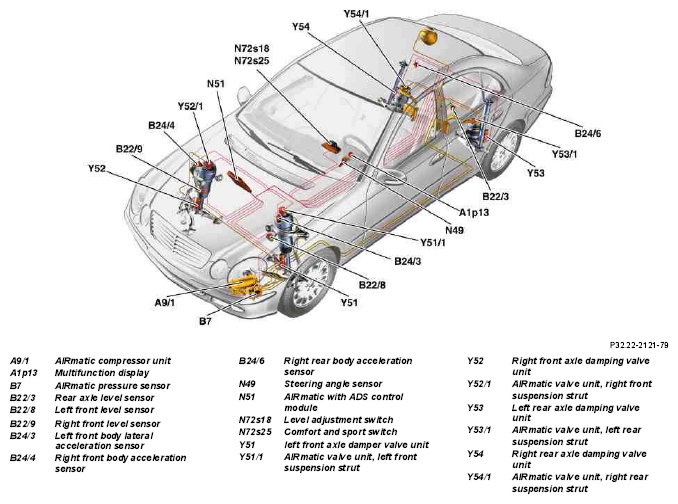

Fig 1: Location Of Electrical/Electronic Components - AIRmatic

G04984558
