Remove/install switch for steering wheel heater and steering column adjustment - AR46.11-P-0004T
MODEL /211.0 ///2 /6 with CODE (275a) Memory package (driver's seat, steering column, mirrors)
As of model year 04
| Remove/install | |||
|---|---|---|---|
| 1 | Remove steering wheel | AR46.10-P-0100T | |
| 2 | Remove clock spring contact | AR46.10-P-0200TA | |
| 3 | Remove steering angle sensor | AR46.10-P-0300TA | |

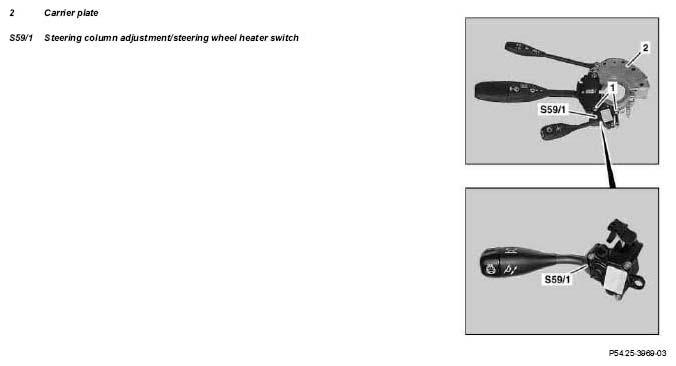

| 4 | Dismantle steering column adjustment/steering wheel heater switch (S59/1) from carrier plate (2) | ||
| 5 | Install in the reverse order |
