Fill power steering pump and bleed - AR46.30-P-0010T

MODEL 211.004 /006 /007 /008 /016 /023 /026 /028 /029 /041 /042 /206 /207 /208 /216 /223 /226 /241 /242 /606 /608 /616

Using model 211 with engine 647 as an example

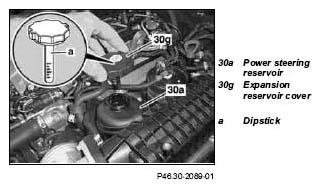

Fig 1: Identifying Expansion Reservoir Cover, Power Steering Reservoir And Dipstick - Model 211 With Engine 647

Shown on model 211 with engine 628

Fig 2: Identifying Expansion Reservoir Cover, Power Steering Reservoir And Dipstick - Shown On Model 211 With Engine 628

	Remove/install
1	Hoist vehicle with lifting platform until wheels are free	Model 211	AR00.60-P-1000T
2.1	Remove cylinder head cover trim	Engine 646, 647	AR01.20-P-5014-02A
		Engine 648	AR01.20-P-5014-02C
			*BA01.20-P-1002-01G
			*BA01.20-P-1003-01G
2.2	Remove engine trim panel	Engine 629	AR01.10-P-2405TJ
	Charging
3	Fill expansion reservoir (30a) with MB-steering gear oil	Do not  start the engine! If the engine is started there is a risk of air entering the hydraulic steering system, which is then extremely difficult to remove. Fill the expansion reservoir (30a) with MB steering gear oil up to approx. 10 mm below the top edge of the reservoir. Add MB steering gear oil continuously, until the fluid level remains constant.
			*BF46.20-P-1001-01A
	Bleeding
4	Turn steering wheel from steering stop to steering stop	Do not  start the engine! If the engine is started there is a risk of air entering the hydraulic steering system, which is then extremely difficult to remove. Slowly turn steering wheel from steering stop to steering stop until no more bubbles are ascertained in the expansion reservoir (30a). Repeat turning the steering from stop to stop several times (up to 30 times). During this process MB steering gear oil must be added to the expansion reservoir by an assistant.
	Bleeding
	Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
5	Start engine without moving the steering	Allow engine to run for approx. 1 min at idle speed. During this process an assistant must observe the steering gear oil level in the expansion reservoir (30a) and add MB steering gear oil if necessary.
6	Turn steering wheel from steering stop to steering stop	When the engine is running, turn the steering wheel slowly several times from steering stop to steering stop, in the meantime refilling the expansion reservoir (30a) with MB steering gear oil. Repeat process until the steering gear oil level remains constant in the expansion reservoir (30a) and there are no more bubbles.
	Checking
7	Check oil level in expansion reservoir (30a) and fill to maximum fill level	The oil level in the expansion reservoir (30a) must always be filled up to the maximum level.
	Power steering - checking and correcting oil level	Model 211.004 /006 /007 /008 /016 /023 /026 /028 /029 /206 /208 /216 /223 /226 /606 /608 /616	AP46.00-P-4611P
		Model 211.041 /042 /241 /242	AP46.00-P-4611BB
8	Check steering system when engine is running for signs of leaks and proper function	In the event of leakage, find and eliminate cause.
9	Install in the reverse order
