Remove/install cruise control switch - AR54.25-P-2803T

MODEL 211.0 /2 /6

Up to model year 04

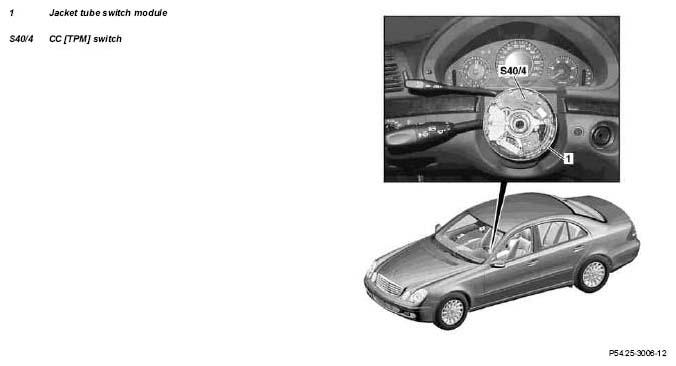

Fig 1: Identifying Cruise Control Switch Components - Model 211.0 /2 /6
G04984441
REMOVINGINSTALLING Remove/install
1 Remove clock spring contact   AR46.10-P-0200T
2 Take CC [TPM] switch (S40/4) out of the steering column switch module (1)
3 Install in the reverse order
4 Carry out function check of cruise control pushbutton switch (S40/4)
