Remove/install battery - AR54.10-P-0005TA

MODEL 211.2/ 6

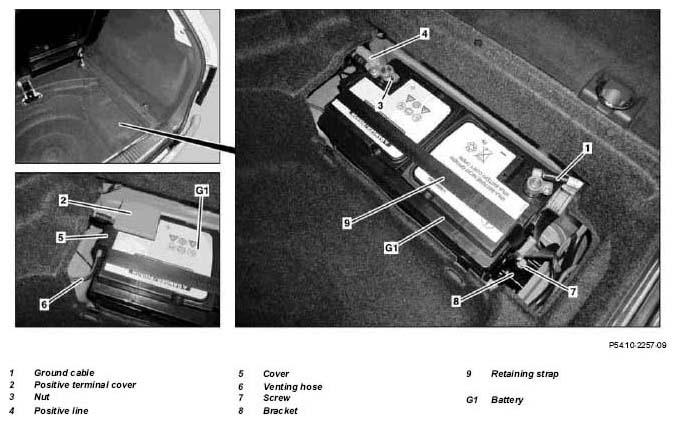

Fig 1: Identifying Battery Components - Model 211.2/ 6

Shown on vehicle up to 31.5.06

	Remove/install
	Risk of explosion  caused by oxyhydrogen gas. Risk of poisoning and caustic burns  caused by swallowing battery acid. Risk of injury  caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
	Notes on battery		AH54.10-P-0001-01A
	Notes on AGM battery		AH54.10-P-0002-01A
1	Disconnect ground line (1) from the battery (G1)	Model 211.2	AR54.10-P-0003TA
		Model 211.6	AR54.10-P-0003T
2	Remove positive terminal cover (2)
3	Loosen nut (3) and remove positive line (4) from the battery (G1)	Installation:  Ensure that the positive line (4) is seated firmly, otherwise the positive terminal may be damaged.
4	Unclip cover (5) and detach bleed hose (6)
5	Remove bolt (7) and remove bracket (8)
6	Loosen retaining strap (9) and remove battery (G1) with supporting bracket from the load compartment	Installation:  Pay attention to the correct seating of the battery (G1) in the spare tire well.
7	Install in the reverse order
