Charge battery - AR54.10-P-1130T

MODEL 211, 219

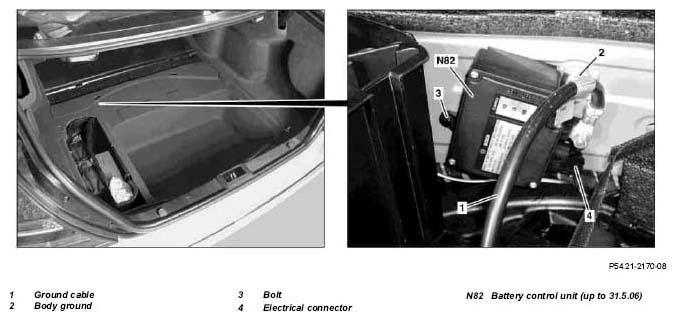

Fig 1: Identifying Ground Cable, Screw, Electrical Connector And Battery Control Unit Components - Model 211, 219

Shown on model 211.0 up to 31.5.06

	Check
	Risk of explosion  caused by oxyhydrogen gas. Risk of poisoning and caustic burns  caused by swallowing battery acid. Risk of injury  caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fires, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and safety glasses. Only pour battery acid into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
1	Check condition of battery		AR54.10-P-1129TX
	Charging
2	Connect charger to battery	Do not connect the connections with incorrect polarity as this will cause a short circuit. Make sure that the vent hose and the stop plugs of the battery are installed in the correct position, otherwise escaping battery acid will damage the vehicle. Connect positive pole of battery charger to positive pole of battery. Connect the negative terminal of the charger to body ground (2) only (not to the battery negative terminal) so that the battery control unit (N82) (up to 31.5.06) or battery sensor (as of 1.6.06) can detect charging of the battery.
3	Charge battery	Discharged AGM batteries with a voltage below 7 V are not "detected" depending on the charger type, therefore a second charged battery (12 V) must be connected in parallel to the AGM battery before charging. Normal charging:  Charging current max. 10 % of battery capacity: e.g. max. 10 A charging current for a 100 Ah battery. Rapid charging:  Charging current max. 50 % of battery capacity for 30 minutes: e.g. max. 50 A charging current for 100 Ah battery.
4	Disconnect battery charger	Always switch off charger beforehand in order to prevent arcing.
	Check
5	Check battery after charging		AR54.10-P-1129TX
