Analysis sheet for battery control unit (BSG), form - OF54.21-P-3000-03A

MODEL 211

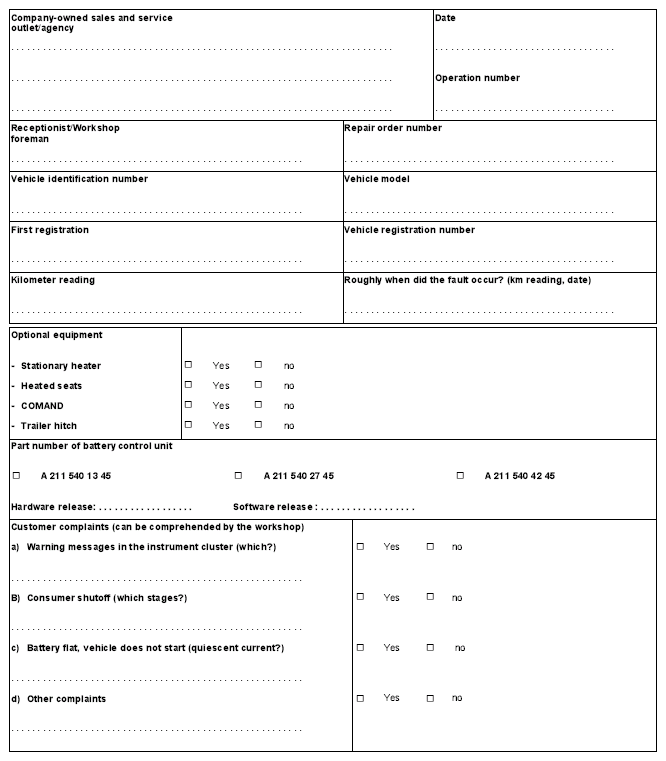

Fig 1: Analysis Sheet Form (1 Of 2)

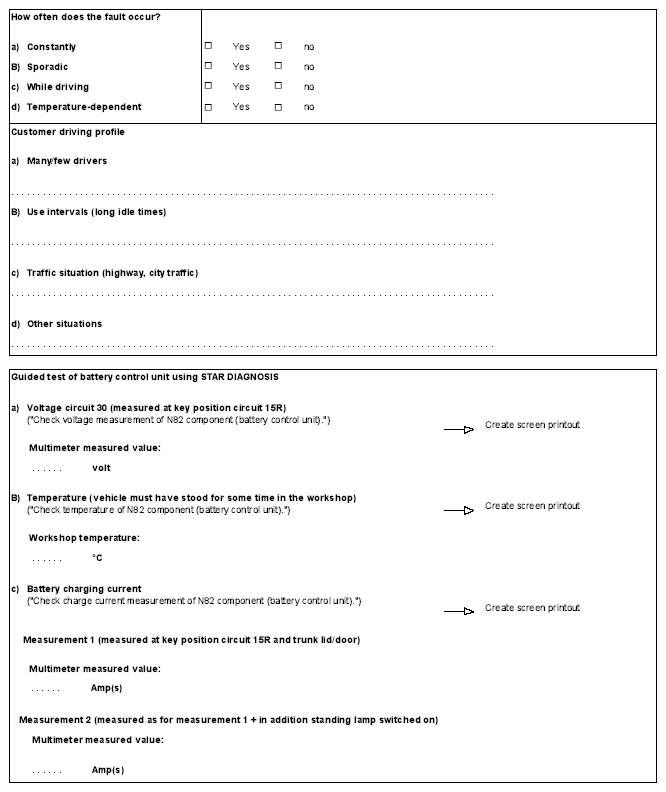

Fig 2: Analysis Sheet Form (2 Of 2)

When returning a part the following is to be attached to the completely filled out analysis sheet:

• Printout of STAR DIAGNOSIS quick test report
• Screen printout of actual value tests a, b and c
