Remove/install cover for filler fitting - AR63.50-P-1400-01TA

Fig 1: Identifying When Replacing Right Rear Fender. (211 589 00 91 00)

Fig 2: Identifying Cover panel (211 589 02 91 00)

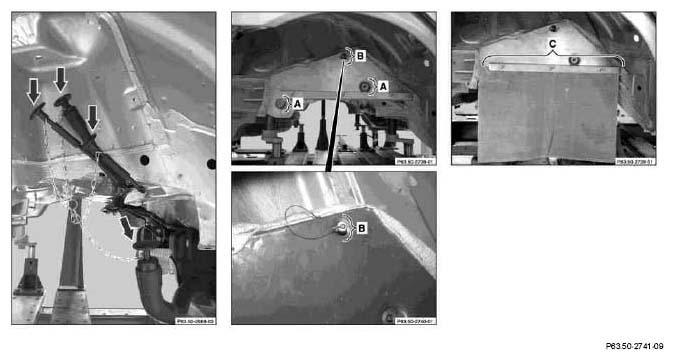

Fig 3: Identifying Inner Fender At Rear Inner Wheel Arch Panel

1. Remove inner fender at rear inner wheel arch panel.
2. Remove expansion tank and fuel filler neck from tank system.
3. Plug open fuel lines with plastic plugs (arrows).
4. Fasten cover on inner rear wheelhouse (areas A and B).

   Use original nuts (area A).

5. Install protective cover (area C).
