Install outer part of rear center section and weld in - AR64.20-P-1000-10TA
TEST VALUES FOR GAPS ON HOODS, DOORS AND LIDS
| Number | Designation | Model 211.2 | |||
|---|---|---|---|---|---|
| BE60.00-P-1003-01F | Gap dimensions | Rear fender to taillamp | Dim. "M" | mm | 2.5 (± 1) |
| Fig., see | AR60.00-P-0700-01TA | ||||
| BE60.00-P-1005-01F | Gap dimensions | Tailgate to rear fender | Dim. "Q" | mm | 4.5 (± 1) |
| Taillamp in rear door to taillamp | Dim. "R" | mm | 5 (± 1) | ||
| Rear window to D-pillar | Dim. "T" | mm | 4.5 (± 1) | ||
| Fig., see | AR60.00-P-0700-01TA | ||||
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1003-01A | Electrode miller |
| WH58.30-Z-1003-02A | Clamping pliers |
WORKSHOP EQUIPMENT
| WE58.40-Z-1002-02A | Spot welder |
| WE58.40-Z-1006-08A | Cavity preservation gun |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1003-01A | Sealant | A 001 989 63 20 |
| BR00.45-Z-1041-01A | Seam sealant, sprayable 310 ml | A 002 989 84 20 |
| BR00.45-Z-1003-05A | Preservation agent | A 000 986 72 70 05 |
- Install bottom rear center, taillamps, spacers and striker eye.

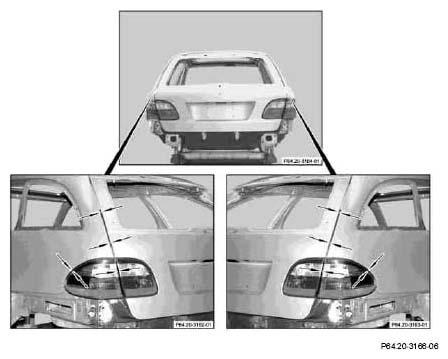

- Check gaps and adjust:
rear fender to taillamp
taillamp to rear fender
taillamp in rear door to taillamp
rear window to D-pillar
Use feeler gage.
- Fit outer part of rear center section (hole and form fit) and fasten with clamping pliers.

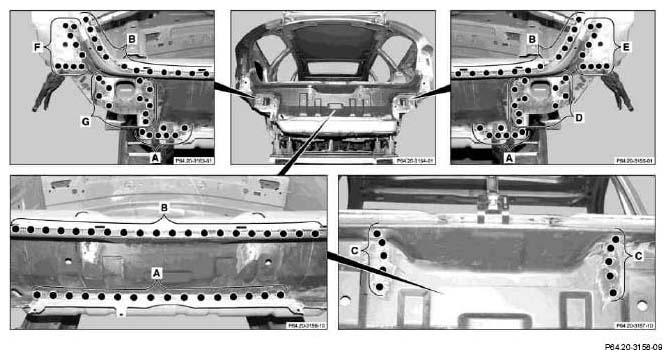

- Weld in rear center section with
(areas A, B, C, D, E, F, and G).
