Prepare rear wall for installation - AR64.10-P-5746-02T
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1001-35A | Aluminum workshop vehicle |
WORKSHOP EQUIPMENT
| WE58.40-Z-1001-03A | Drill (electric/pneumatic) |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1092-02A | Adhesive | A 009 989 36 71 |

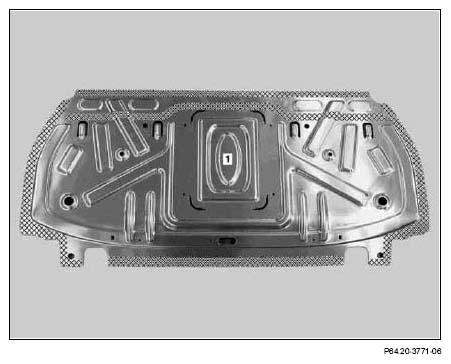

- Sand connection surfaces down to bare metal in the cross-hatched areas.
Use chrome-nickel wire brush.
- Grind connection surfaces in crosshatched areas with sanding paper.
- Clean connection surfaces in crosshatched areas with brush or lent-free rag.
- Coat connection surfaces in crosshatched areas with primer.
